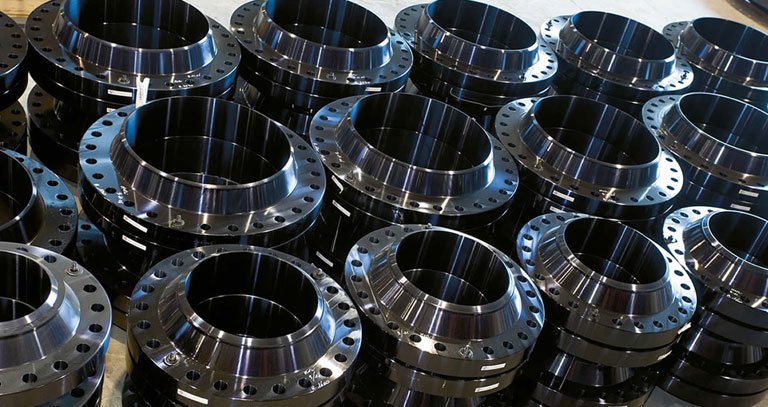

ASTM A350 LF2 Low Temp Forged Fittings & Flanges in Stock – ANSI/ASME Compliant – Socket Weld, Threaded, WNRF, SORF – Sizes ½” to 48”.
We are an ISO 9001:2015 certified global supplier of ASTM A350 LF2 Carbon Steel Flanges and Forged Fittings, catering to industries requiring low-temperature service. Manufactured in compliance with ASME B16.5, B16.11, and MSS SP-83, our product range includes WNRF, SORF, RTJ, Blind Flanges, along with Socket Weld and Threaded Elbows, Tees, Couplings, Unions, Plugs, Bushings, and more. Backed by precision machining, quality assurance, and robust logistics, we serve clients across energy, oil & gas, shipbuilding, and petrochemical sectors.
ASTM A350 LF2 components are specifically designed for low-temperature service, making them suitable for cryogenic applications, LNG facilities, oil refineries, chemical plants, and offshore structures. These flanges and fittings are ideal where notch toughness is a critical requirement in piping systems. Their ability to maintain strength and impact resistance at temperatures as low as –46°C (–50°F) makes them a reliable choice in pressure systems operating in cold or sub-zero conditions.
The ASTM A350 LF2 grade offers excellent mechanical strength, ductility, and notch toughness. Available in pressure ratings from Class 150 to 2500, these components can be supplied in sizes ranging from ½” to 48”, in both forged and machined forms. We also provide custom fabrication, CNC beveling, and heat-treated options such as normalized and quenched & tempered, based on project requirements. All fittings and flanges are available with black, anti-rust coated, or pickled finishes.
All ASTM A350 LF2 flanges and fittings are subjected to stringent quality tests including hydrostatic, ultrasonic, radiographic, PMI, and Charpy impact testing. Products are delivered with complete documentation, including EN 10204 3.1/3.2 certificates, IBR approval, NACE MR0175 compliance, and PED conformity. With strong inventory and export capabilities, we deliver to markets across USA, Europe, Middle East, Africa, and Southeast Asia, ensuring timely dispatch and tailored export packaging.
Trusted Exporter of ASTM A350 LF2 LTCS Flanges (WNRF, RTJ, SORF) ANSI B16.5/B16.11 Standards – Socket Weld & Threaded Types: Elbows, Tees, Couplings, Unions, Plugs – ASME B16.11, BS 3799 – Sizes ½” to 48” – WNRF, SORF, BLRF, SWRF, RTJ, Lap Joint & Threaded Flanges.
Technical Index
Industrial LTCS A350 LF2 Specifications
| Material Grade | ASTM A350 LF2 (Low Temperature Carbon Steel – Flanges & Forged Fittings) |
|---|---|
| Available Product Types | Flanges (WNRF, SORF, Blind, Socket Weld, Threaded, RTJ) & Forged Fittings (Elbows, Tees, Reducers, Couplings, Unions, Bushings, Caps) |
| Flanges Size Range | ½” NB to 24” NB |
| Flange Pressure Class | 150#, 300#, 600#, 900#, 1500#, 2500# |
| Forged Fittings Size | ½” NB to 4” NB (Socket Weld & Threaded) |
| Fitting Pressure Class | Class 2000#, 3000#, 6000# |
| Standard Specifications | ASTM A350 / ASME SA350 |
| Manufacturing Standards | ASME B16.5 (Flanges), ASME B16.11 (Forged Fittings), MSS SP‑83, MSS SP‑44 (Flanges), MSS SP‑95 |
| Flange Types | Weld Neck, Slip‑On, Socket Weld, Threaded, Blind, Ring‑Type Joint |
| Forged Fitting Types | 90° Elbow (LR/SR), 45° Elbow, Equal Tee, Reducing Tee, Cross, Full/Half Coupling, Union, Bushing, Cap |
| Heat Treatment | Normalized, Quenched & Tempered (as per grade requirements) |
| Mechanical Properties | Tensile Strength: 485–655 MPa Yield Strength: ≥250 MPa Elongation: ≥22% |
| Testing & Certifications | ISO 9001:2015, EN 10204 3.1/3.2 MTC, Charpy V-Notch Impact Test, PMI, UT, Radiography, Hydrostatic Test, NACE MR0175 |
| Surface Finish | Black Coated, Pickled, Sand Blasted, Anti-Rust Coated |
| Manufacturing Capabilities | Hot Forging, CNC Machining, Beveling, Induction Heat Treatment, Custom Fabrication |
| Raw Material Sources | India, Japan, South Korea, USA, Germany, Italy |
| Export Destinations | USA, Canada, UAE, Saudi Arabia, Qatar, Oman, Egypt, South Africa, Nigeria, Australia, Europe |
Industrial ASTM A350 LF2 Carbon Steel Standards
| ANSI/ASME B16.47 Flanges | ANSI/ASME B16.36 Flanges | ANSI/ASME B16.5 Flanges | Pr. EN1902-1 Flanges |
| DIN Flanges | JIS Flanges | BS 4504 Flanges | BS 10 Flanges |
| MSS SP-44 Flanges | JIS B2220 Flanges | KS B1503 Flanges | UNI Flanges |
| SABS/SANS 1123 Flanges | AS 2129, AS 4087 Flanges | ISO 9624, ISO 7005-1 Flanges | AWWA Flanges Standard |
| GOST Standard Flanges | API Flanges | AS/ANZ 4331.1 Flanges | Series A Flange |
| Series B Flange | SAE J518 Flanges | GB Flange | Norwegian Standard Flanges |
| ASME B16.11 – Forged Steel Fittings, Socket-Welding and Threaded | BS 3799 – Screwed and Socket-Welding for the Petroleum Industry | MSS SP-79 – Socket-Welding Reducer Inserts | MSS SP-83 – Class 3000 Steel Pipe Unions, Socket-Welding and Threaded |
| MSS SP-95 – Swage(d) Nipples and Bull Plugs | MSS SP-97 – Integrally Reinforced Forged Branch Outlet Fittings | DIN 2986 – Threaded Fittings | DIN 2999 – Pipe Threads for Fittings (British Standard Pipe Threads) |
| ISO 49 – Malleable Iron Fittings, Threaded | ISO 7/1 – Pipe Threads Where Pressure-tight Joints Are Made on the Threads | EN 10241 – Steel Threaded Pipe Fittings | JIS B2316 – Japanese standard for forged pipe fittings. |
ASTM A350 LF2 LTCS Chemical Composition
| Grades | C% | Mn% | Si% | S% | P% | Cr% | Ni% |
|---|---|---|---|---|---|---|---|
| A350 LF2 | 0.30 max | 0.6/1.35 | .15/.30 | .040 max | .035 max | 0.30 max | 0.40 max |
Carbon Steel A350 LF2 Flanges Mechanical Properties
| Property | ASTM A350-LF2 |
|---|---|
| Tensile Strength Min, psi | 70,000-95,000 |
| Tensile Strength Min, N/mm² | 485-655 |
| Yield Strength Min, psi | 36,000 |
| Yield Strength Min, N/mm² | 250 |
| Elongation (%) | 22 |
| Reduction of Area (%) | 30 |
| Hardness, maximum | 15/12 ft-lbs |
| CVN at -50℉ | 20/16 joules |
ASTM A350 LF2 Carbon Steel Types
ASTM A350 LF2 Carbon Steel Industries & Applications
ASTM A350 LF2 Carbon Steel Flange Weight Chart
| Size | OD | WT | SR 90 Deg Elbows Centre – Face A | Weight | LR 90 Deg Elbows Centre – Face A | Weight | SR 45 Deg Elbows Centre – Face B | Weight | ||
|---|---|---|---|---|---|---|---|---|---|---|
| mm | inch. | mm | mm | SCH | mm | kg | mm | kg | mm | kg |
| 500 | 20″ | 508 | 9.52 | STD | 508 | 93.5 | 762 | 140 | 318 | 85 |
| 12.7 | X.S | 508 | 124 | 762 | 186 | 318 | 112.5 | |||
| 450 | 18″ | 457 | 9.52 | STD | 457 | 75.6 | 686 | 113 | 286 | 56.5 |
| 12.7 | X.S | 457 | 100 | 686 | 150 | 286 | 75 | |||
| 400 | 16″ | 406.4 | 9.52 | STD | 406 | 59.5 | 610 | 89.3 | 254 | 45 |
| 12.7 | X.S | 406 | 78.7 | 610 | 118 | 254 | 59 | |||
| 350 | 14″ | 355.6 | 9.52 | STD | 356 | 45.4 | 533 | 68.1 | 222 | 34.1 |
| 12.7 | X.S | 356 | 60 | 533 | 90 | 222 | 45 | |||
| 300 | 12″ | 323.9 | 9.52 | STD | 305 | 35.4 | 457 | 53.1 | 190 | 26.6 |
| 12.7 | X.S | 305 | 46.7 | 457 | 70 | 190 | 35 | |||
| 250 | 10″ | 273.9 | 9.27 | STD | 254 | 24.1 | 381 | 36.1 | 159 | 18.1 |
| 12.7 | X.S | 254 | 32.5 | 381 | 48.8 | 159 | 24.4 | |||
| 200 | 8″ | 219.1 | 8.18 | STD | 203 | 13.6 | 305 | 20.4 | 127 | 10.2 |
| 12.7 | X.S | 203 | 20.9 | 305 | 30.9 | 127 | 15.5 | |||
| 150 | 6″ | 168.3 | 7.11 | STD | 152.4 | 6.8 | 229 | 10.1 | 95.2 | 5.1 |
| 10.97 | X.S | 152.4 | 10.2 | 229 | 15.3 | 95.2 | 7.7 | |||
| 125 | 5″ | 141.3 | 6.65 | STD | 127 | 4.8 | 190 | 6.8 | 79.4 | 3.4 |
| 9.5 | X.S | 127 | 6.5 | 190 | 10 | 79.4 | 5 | |||
| 100 | 4″ | 114.3 | 62 | STD | 101.6 | 2.8 | 152.4 | 4.2 | 63.5 | 2.1 |
| 8.56 | X.S | 101.6 | 3.9 | 152.4 | 5.7 | 63.5 | 2.9 | |||
| 80 | 3″ | 88.9 | 5.49 | STD | 76.2 | 1.45 | 114.3 | 2.18 | 50.8 | 1.1 |
| 7.62 | X.S | 76.2 | 1.95 | 114.3 | 2.86 | 50.8 | 1.45 | |||
| 65 | 21/2″ | 73 | 5.16 | STD | 63.5 | 0.95 | 95.2 | 1.46 | 44.4 | 0.73 |
| 71 | X.S | 63.5 | 1.27 | 95.2 | 1.82 | 44.4 | 0.91 | |||
| 50 | 2″ | 60.3 | 3.91 | STD | 50.8 | 0.5 | 76.2 | 0.72 | 34.9 | 0.36 |
| 5.54 | X.S | 50.8 | 0.68 | 76.2 | 1 | 34.9 | 0.5 | |||
| 40 | 11/2″ | 48.3 | 3.68 | STD | 38.1 | 0.26 | 57.1 | 0.4 | 28.6 | 0.2 |
| 58 | X.S | 38.1 | 0.35 | 57.1 | 0.5 | 28.6 | 0.25 | |||
| 32 | 11/4″ | 42.2 | 3.56 | STD | 31.75 | 0.18 | 47.6 | 0.28 | 25.4 | 0.14 |
| 4.85 | X.S | 31.75 | 0.24 | 47.6 | 0.39 | 25.4 | 0.2 | |||
| 25 | 1″ | 33.4 | 3.38 | STD | 25.4 | 0.11 | 38.1 | 0.15 | 22.2 | 09 |
| 4.55 | X.S | 25.4 | 0.14 | 38.1 | 0.19 | 22.2 | 0.11 | |||
| 20 | 3/4″ | 26.7 | 2.87 | STD | – | – | 28.6 | 08 | 11.1 | 04 |
| 3.91 | X.S | – | – | 28.6 | 0.11 | 11.1 | 05 | |||
| 15 | 1/2″ | 21.3 | 2.78 | STD | – | – | 38.1 | 08 | 15.9 | 04 |
| 3.73 | X.S | – | – | 38.1 | 0.10 | 15.9 | 05 | |||
ASTM A350 LF2 Carbon Steel Forged Fittings Dimensions
| Size | OD | WT | SR 90 Deg Elbows Centre – Face A | Weight | LR 90 Deg Elbows Centre – Face A | Weight | SR 45 Deg Elbows Centre – Face B | Weight | ||
|---|---|---|---|---|---|---|---|---|---|---|
| mm | inch. | mm | mm | SCH | mm | kg | mm | kg | mm | kg |
| 500 | 20″ | 508 | 9.52 | STD | 508 | 93.5 | 762 | 140 | 318 | 85 |
| 12.7 | X.S | 508 | 124 | 762 | 186 | 318 | 112.5 | |||
| 450 | 18″ | 457 | 9.52 | STD | 457 | 75.6 | 686 | 113 | 286 | 56.5 |
| 12.7 | X.S | 457 | 100 | 686 | 150 | 286 | 75 | |||
| 400 | 16″ | 406.4 | 9.52 | STD | 406 | 59.5 | 610 | 89.3 | 254 | 45 |
| 12.7 | X.S | 406 | 78.7 | 610 | 118 | 254 | 59 | |||
| 350 | 14″ | 355.6 | 9.52 | STD | 356 | 45.4 | 533 | 68.1 | 222 | 34.1 |
| 12.7 | X.S | 356 | 60 | 533 | 90 | 222 | 45 | |||
| 300 | 12″ | 323.9 | 9.52 | STD | 305 | 35.4 | 457 | 53.1 | 190 | 26.6 |
| 12.7 | X.S | 305 | 46.7 | 457 | 70 | 190 | 35 | |||
| 250 | 10″ | 273.9 | 9.27 | STD | 254 | 24.1 | 381 | 36.1 | 159 | 18.1 |
| 12.7 | X.S | 254 | 32.5 | 381 | 48.8 | 159 | 24.4 | |||
| 200 | 8″ | 219.1 | 8.18 | STD | 203 | 13.6 | 305 | 20.4 | 127 | 10.2 |
| 12.7 | X.S | 203 | 20.9 | 305 | 30.9 | 127 | 15.5 | |||
| 150 | 6″ | 168.3 | 7.11 | STD | 152.4 | 6.8 | 229 | 10.1 | 95.2 | 5.1 |
| 10.97 | X.S | 152.4 | 10.2 | 229 | 15.3 | 95.2 | 7.7 | |||
| 125 | 5″ | 141.3 | 6.65 | STD | 127 | 4.8 | 190 | 6.8 | 79.4 | 3.4 |
| 9.5 | X.S | 127 | 6.5 | 190 | 10 | 79.4 | 5 | |||
| 100 | 4″ | 114.3 | 62 | STD | 101.6 | 2.8 | 152.4 | 4.2 | 63.5 | 2.1 |
| 8.56 | X.S | 101.6 | 3.9 | 152.4 | 5.7 | 63.5 | 2.9 | |||
| 80 | 3″ | 88.9 | 5.49 | STD | 76.2 | 1.45 | 114.3 | 2.18 | 50.8 | 1.1 |
| 7.62 | X.S | 76.2 | 1.95 | 114.3 | 2.86 | 50.8 | 1.45 | |||
| 65 | 21/2″ | 73 | 5.16 | STD | 63.5 | 0.95 | 95.2 | 1.46 | 44.4 | 0.73 |
| 71 | X.S | 63.5 | 1.27 | 95.2 | 1.82 | 44.4 | 0.91 | |||
| 50 | 2″ | 60.3 | 3.91 | STD | 50.8 | 0.5 | 76.2 | 0.72 | 34.9 | 0.36 |
| 5.54 | X.S | 50.8 | 0.68 | 76.2 | 1 | 34.9 | 0.5 | |||
| 40 | 11/2″ | 48.3 | 3.68 | STD | 38.1 | 0.26 | 57.1 | 0.4 | 28.6 | 0.2 |
| 58 | X.S | 38.1 | 0.35 | 57.1 | 0.5 | 28.6 | 0.25 | |||
| 32 | 11/4″ | 42.2 | 3.56 | STD | 31.75 | 0.18 | 47.6 | 0.28 | 25.4 | 0.14 |
| 4.85 | X.S | 31.75 | 0.24 | 47.6 | 0.39 | 25.4 | 0.2 | |||
| 25 | 1″ | 33.4 | 3.38 | STD | 25.4 | 0.11 | 38.1 | 0.15 | 22.2 | 09 |
| 4.55 | X.S | 25.4 | 0.14 | 38.1 | 0.19 | 22.2 | 0.11 | |||
| 20 | 3/4″ | 26.7 | 2.87 | STD | – | – | 28.6 | 08 | 11.1 | 04 |
| 3.91 | X.S | – | – | 28.6 | 0.11 | 11.1 | 05 | |||
| 15 | 1/2″ | 21.3 | 2.78 | STD | – | – | 38.1 | 08 | 15.9 | 04 |
| 3.73 | X.S | – | – | 38.1 | 0.10 | 15.9 | 05 | |||
Major Industrial ASTM A350 LF2 Carbon Steel Fittings & Flanges Export Countries
United Arab Emirates (UAE), Jordan, Bahrain, Kuwait, Oman, Qatar, Saudi Arabia, United States of America (USA), Singapore, Malaysia, Azerbaijan, Armenia, Georgia, Egypt, Algeria, Nigeria, South Africa, Kenya, Morocco, Ethiopia, Ghana, Tanzania, Sudan, Uganda, Angola.
