Wide Range of ASME B16.11 Forged Tees – Equal & Reducing Variants – Available in Threaded (NPT/BSP) and Socket Weld Designs – Manufactured using Carbon Steel A105, Stainless Steel F304/F316, Alloy Steel F5/F9/F22, Duplex 2205, Super Duplex, and Nickel-Based Alloys like Inconel, Hastelloy, and Monel.

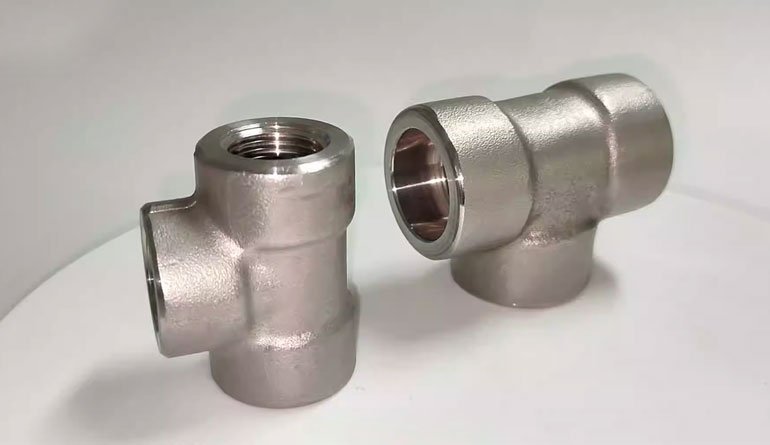

Bhavani Industries offers a premium range of forged Tee fittings, designed for use in high-pressure piping systems to efficiently branch the flow of fluids. A Tee fitting is used to either combine or split fluid flow, and it features one inlet and two outlets arranged at 90 degrees to the main line. Our forged Tees are available in equal (straight) Tee and reducing Tee variants, depending on the size and flow requirements. Manufactured using high-strength forged materials, these fittings ensure reliable performance in critical industrial environments.

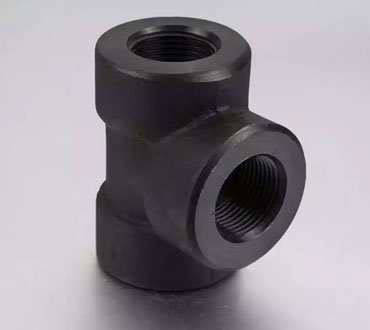

Our Tees are available in both socket weld and threaded (screwed) end connections, produced in compliance with ASME B16.11, MSS-SP-79, and other international standards. We offer Tees in pressure classes 2000, 3000, 6000, and 9000, and in sizes ranging from 1/8” to 4”. Material options include Carbon Steel (ASTM A105, A350 LF2), Stainless Steel (ASTM A182 F304, F316, etc.), Alloy Steel (F11, F22, F91), Duplex/Super Duplex, and Nickel Alloys such as Inconel, Monel, and Hastelloy. All fittings undergo strict heat treatment, inspection, and machining processes to ensure strength, dimensional accuracy, and corrosion resistance.
Forged Tee from Bhavani Industries are widely used in industries such as oil & gas, chemical processing, petrochemicals, power plants, and shipbuilding, where system integrity and leak-proof connections are critical. These Tees are ideal for complex pipeline layouts, allowing for smooth distribution and redirection of flow without pressure loss. With high-quality raw materials and advanced manufacturing capabilities, Bhavani Industries ensures durable, high-performance Tee fittings for the most demanding applications.
ASME B16.11 Forged Tees – Available in Equal and Reducing Designs with Socket Weld and Threaded Ends – Sizes from 1/8” to 4”, Pressure Ratings: 2000, 3000, 6000, 9000 – Engineered for strength, reliability, and leak-proof performance in critical piping.
Technical Index
Industrial Forged Tee Standard Specifications
| Forged Tee Size Availability | 1/2″NB TO 4″NB IN (Threaded & Socket Weld) |
|---|---|
| Pressure Class Ratings | 2000LBS,3000LBS, 6000LBS, 9000LBS |
| Dimensions | ASME B16.11, MSS-SP-79, MSS-SP-83, MSS-SP-95, MSS-SP-97 |
| DIN | DIN 2986, 2999 |
| BS | BS 3799 |
| Thread | BSPP & BSPT Threads, NPTF & NPT Threads, UNF & UN Threads |
| Types | Equal, Reducing Tee, Unequal Tee |
| Material Grades | Carbon Steel (A105, A350 LF2), Stainless Steel (304/304L, 316/316L), Alloy Steel (F11, F22), Duplex, Super Duplex, Inconel, Monel, Hastelloy |
| Coating / Surface Treatment | Black Paint, Anti-rust Coating, Galvanized, Transparent Oil |
| Ends | Threaded Ends (NPT/BSP), Socket Weld Ends |
| Tolerance | As per ASME B16.11 |
| Testing | PMI, Hydro Test, UT, RT, Visual & Dimensional Inspection |
| Certification | EN 10204 3.1 / 3.2, ISO 9001:2015, PED 2014/68/EU (where applicable) |
| Material Sourcing Regions | India, South Korea, Japan, USA, Germany, Italy |
| Global Export Markets | UAE, Saudi Arabia, Oman, Qatar, Bahrain, Kuwait, USA, Malaysia, Singapore, Egypt, Nigeria, South Africa, Kenya, Ghana, Turkey, Brazil, Mexico |
Industrial Forged Tee Standards
| ASME B16.11 – Forged Steel Fittings, Socket-Welding and Threaded | BS 3799 – Screwed and Socket-Welding for the Petroleum Industry | MSS SP-79 – Socket-Welding Reducer Inserts | MSS SP-83 – Class 3000 Steel Pipe Unions, Socket-Welding and Threaded |
| MSS SP-95 – Swage(d) Nipples and Bull Plugs | MSS SP-97 – Integrally Reinforced Forged Branch Outlet Fittings | DIN 2986 – Threaded Fittings | DIN 2999 – Pipe Threads for Fittings (British Standard Pipe Threads) |
| ISO 49 – Malleable Iron Fittings, Threaded | ISO 7/1 – Pipe Threads Where Pressure-tight Joints Are Made on the Threads | EN 10241 – Steel Threaded Pipe Fittings | JIS B2316 – Japanese standard for forged pipe fittings. |
Forged Socket weld Tee Material Grades and Standards
| Stainless Steel Forged Tee | ASTM / ASME A/SA 182: F 304, 304L, 304H, 309S, 309H, 310S, 310H, 316, 316TI, 316H, 316L, 316LN, 317, 317L, 321, 321H, 347, 347H, 904L |
|---|---|
| Duplex Steel Forged Tee | ASTM A182 / ASME SA182 UNS S31803, S32205. Werkstoff No. 1.4462 |
| Super Duplex Steel Forged Tee | ASTM A182 / ASME SA182 UNS S32750, S32760, S32950. Werkstoff No. 1.4410 |
| Carbon Steel Forged Tee | ASTM A105/A694/ A350 LF3/A350 LF2: F42, F46, F52, F56, F60, F65, F70 |
| Alloy Steel Forged Tee | ASTM A182: F1, F5, F9, F11, F22, F91 |
| High Nickel Alloy Forged Tee | ASTM / ASME SB 564 / 160 / 472: UNS 2200 (NICKEL 200), UNS 4400 (MONEL 400), UNS 8825 INCONEL (825), UNS 6600(INCONEL 600), UNS 6601 (INCONEL 601), UNS 6625 (INCONEL 625), UNS 10276 (HASTELLOY C 276), UNS 2201 (NICKEL 201), (ALLOY 20 / 20 CB 3) |
| Brass Forged Tee | Brass CA 360, CA 345 and CA 377 / SAE J530, SAE J531 and ASA |
ASME B16.11 Forged Fittings Types
Forged Socket weld Tee Industries & Applications

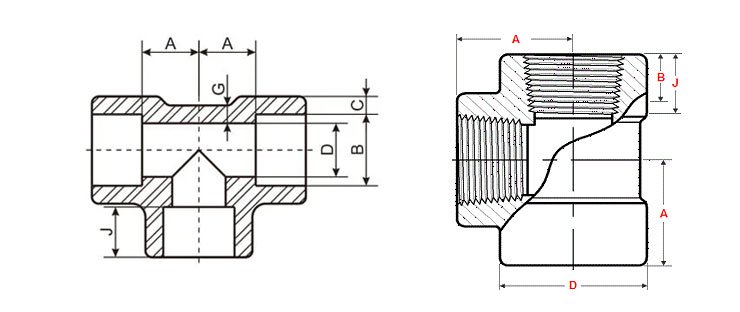

ASME B16.11 Forged Tee Dimensions
NPS 1/2 to 4 – Class 3000 Socket Weld Tee
| NPS | Socket Bore | Bore dia | Depth Socket |
|---|---|---|---|
| B | D | J | |
| 1/2 | 21.95 21.70 | 16.6 15 | 10 |
| 3/4 | 27.30 27.05 | 21.7 20.2 | 13 |
| 1 | 34.05 33.80 | 27.4 25.9 | 13 |
| 1.1/4 | 42.80 42.55 | 35.8 34.3 | 13 |
| 1.1/2 | 48.90 48.65 | 41.7 40.1 | 13 |
| 2 | 61.35 61.10 | 53.5 51.7 | 16 |
| 2.1/2 | 74.20 73.80 | 64.2 61.2 | 16 |
| 3 | 90.15 89.80 | 79.5 46.4 | 16 |
| 4 | 115.80 115.45 | 103.8 100.7 | 19 |
| 1/2 | 4.65 4.10 | 15.5 | 3.75 |
| 3/4 | 4.90 4.25 | 19.5 | 3.90 |
| 1 | 5.70 5.00 | 22 | 4.55 |
| 1.1/4 | 6.05 5.30 | 27 | 4.85 |
| 1.1/2 | 6.35 5.55 | 32 | 5.10 |
| 2 | 6.95 6.05 | 38 | 5.55 |
| 2.1/2 | 8.75 7.65 | 41.5 | 7.00 |
| 3 | 9.50 8.30 | 57.5 | 7.60 |
| 4 | 10.70 9.35 | 66.5 | 8.55 |
NPS 1/2 to 2 – Class 6000 Socket Weld Tee
| NPS | Socket Bore | Bore dia | Depth Socket |
|---|---|---|---|
| B | D | J | |
| 1/2 | 21.95 21.70 | 12.5 11 | 10 |
| 3/4 | 27.30 27.05 | 16.3 14.8 | 13 |
| 1 | 34.05 33.80 | 21.5 19.9 | 13 |
| 1.1/4 | 42.80 42.55 | 30.2 28.7 | 13 |
| 1.1/2 | 48.90 48.65 | 34.7 33.2 | 13 |
| 2 | 61.35 61.10 | 43.6 42.1 | 16 |
| 1/2 | 5.95 5.20 | 19.5 | 4.80 |
| 3/4 | 6.95 6.05 | 22.5 | 5.55 |
| 1 | 7.90 6.95 | 27 | 6.35 |
| 1.1/4 | 7.90 6.95 | 32 | 6.35 |
| 1.1/2 | 8.90 7.80 | 38 | 7.15 |
| 2 | 10.90 9.50 | 41 | 8.75 |
NPS 1/2 to 4 Class 2000 Threaded Tee
| NPS | Min WT | Center to End A | Outside Dia of Band D | Min Length of Thread | |
|---|---|---|---|---|---|
| B | J | ||||
| 1 | 3.68 | 38 | 46 | 14.7 | 17.3 |
| 1/2 | 3.18 | 28 | 33 | 10.9 | 13.6 |
| 3/4 | 3.18 | 33 | 38 | 12.7 | 13.9 |
| 1.1/4 | 3.89 | 44 | 56 | 17 | 18 |
| 1.1/2 | 4.01 | 51 | 62 | 17.8 | 18.4 |
| 2 | 4.27 | 60 | 75 | 19 | 19.2 |
| 2.1/2 | 5.61 | 76 | 92 | 23.6 | 28.9 |
| 3 | 5.99 | 86 | 109 | 25.9 | 30.5 |
| 4 | 6.55 | 106 | 146 | 27.7 | 33 |
1/2 to 4 Class 3000 Threaded Tee
| NPS | Min WT | Center to End A | Min Length of Thread | Outside Dia of Band D | |
|---|---|---|---|---|---|
| B | J | ||||
| 1/2 | 4.09 | 33 | 10.9 | 13.6 | 38 |
| 3/4 | 4.32 | 38 | 12.7 | 13.9 | 46 |
| 1 | 4.98 | 44 | 14.7 | 17.3 | 56 |
| 1.1/4 | 5.28 | 51 | 17 | 18 | 62 |
| 1.1/2 | 5.56 | 60 | 17.8 | 18.4 | 75 |
| 2 | 7.14 | 64 | 19 | 19.2 | 84 |
| 2.1/2 | 7.65 | 83 | 23.6 | 28.9 | 102 |
| 3 | 8.84 | 95 | 25.9 | 30.5 | 121 |
| 4 | 11.18 | 114 | 27.7 | 33 | 152 |
NPS 1/2 to 4 Class 6000 Threaded Tee
| NPS | Min WT | Center to End A | Min Length of Thread | Outside Dia of Band D | |
|---|---|---|---|---|---|
| B | J | ||||
| 1 | 9.93 | 51 | 14.7 | 17.3 | 62 |
| 1/2 | 8.15 | 38 | 10.9 | 13.6 | 46 |
| 3/4 | 8.53 | 44 | 12.7 | 13.9 | 56 |
| 1.1/4 | 10.59 | 60 | 17 | 18 | 75 |
| 1.1/2 | 11.07 | 64 | 17.8 | 18.4 | 84 |
| 2 | 12.09 | 83 | 19 | 19.2 | 102 |
| 2.1/2 | 15.29 | 95 | 23.6 | 28.9 | 121 |
| 3 | 16.64 | 106 | 25.9 | 30.5 | 146 |
| 4 | 18.67 | 114 | 27.7 | 33 | 152 |
Weight Chart of ANSI B16.11 Forged Tee
| Class 2000 | Nominal Pipe Size (NPS) | 1/8 | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 | 2 1/2 | 3 | 4 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| B | – | 29/32 | 1 1/16 | 1 5/16 | 1 9/16 | 1 27/32 | 2 7/32 | 2 1/2 | 3 1/32 | 3 11/16 | 4 5/16 | 5 3/4 | |
| F | – | 3/4 | 3/4 | 1 | 1 1/8 | 1 1/4 | 1 5/16 | 1 3/8 | 1 11/16 | 2 1/16 | 2 1/2 | 3 1/8 | |
| Wt | – | 0.188 | 0.236 | 0.435 | 0.740 | 1.058 | 1.375 | 1.740 | 2.883 | 7.750 | 11.313 | 19.125 | |
| Class 3000 | Nominal Pipe Size (NPS) | 1/8 | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 | 2 1/2 | 3 | 4 |
| B | 29/32 | 1 1/16 | 1 5/16 | 1 9/16 | 1 27/32 | 2 7/32 | 2 1/2 | 3 1/32 | 3 11/32 | 4 | 4 3/4 | 6 | |
| F | 3/4 | 3/4 | 1 | 1 1/8 | 1 1/4 | 1 5/16 | 1 3/8 | 1 11/16 | 1 3/4 | 2 1/16 | 2 1/2 | 3 1/8 | |
| Wt | 0.250 | 0.290 | 0.500 | 0.750 | 1.188 | 1.988 | 2.235 | 3.000 | 4.930 | 7.375 | 13.588 | 19.063 | |
| Class 6000 | Nominal Pipe Size (NPS) | 1/8 | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 | 2 1/2 | 3 | 4 |
| B | 1 1/6 | 1 5/16 | 1 9/16 | 1 27/32 | 2 7/32 | 2 1/2 | 3 1/32 | 3 11/32 | 4 | 4 3/4 | 5 3/4 | – | |
| F | 3/4 | 1 | 1 1/8 | 1 1/4 | 1 5/16 | 1 3/8 | 1 11/16 | 1 3/4 | 2 1/16 | 2 1/2 | 3 1/8 | – | |
| Wt | 0.250 | 0.640 | 0.500 | 1.438 | 2.188 | 2.785 | 4.688 | 5.750 | 9.500 | 15.000 | 30.563 | – | |
