Comprehensive Range of Forged Swage Nipples – Conforming to ASME B16.11 & MSS-SP-95 – Supplied in Concentric and Eccentric Designs – Manufactured from A105 Carbon Steel, Stainless Steel F304/F316, Alloy Steel F11/F22, Duplex 2205, and High-Nickel Alloys including Monel 400, Inconel 625, and Hastelloy C276.
With extensive experience in manufacturing high-quality forged fittings, our company is dedicated to providing reliable and durable piping solutions for a wide range of industries. We specialize in producing precision-engineered Swage Nipples that meet rigorous industry standards, ensuring superior performance in demanding environments. Our commitment to quality, innovation, and customer satisfaction positions us as a trusted partner for clients in sectors such as oil and gas, petrochemical, power generation, and chemical processing.

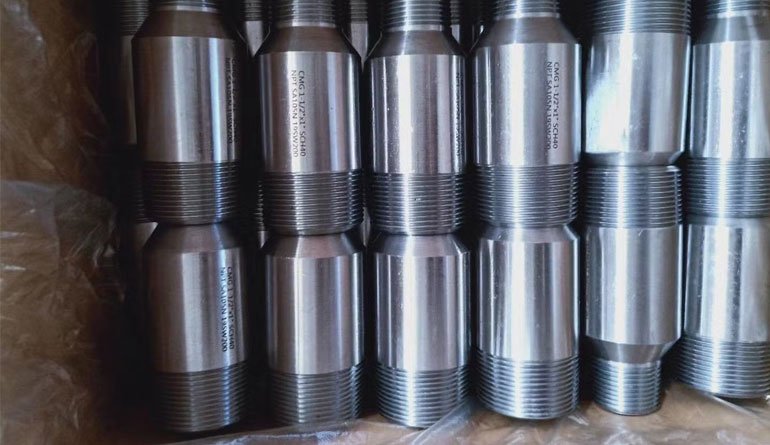

Swage Nipples are specialized pipe fittings designed to connect two pipes of different diameters, enabling a smooth transition in the flow line. These fittings feature a tapered or reduced bore that facilitates the change in pipe size without causing turbulence or pressure loss. Swage nipples are commonly used in piping systems where a gradual reduction is required, ensuring efficient fluid flow and system integrity. They are available in various configurations, including concentric and eccentric designs, to suit different pipeline requirements.
Manufactured in accordance with industry standards such as ASME B16.11, our forged swage nipples come in sizes ranging from 1/8” to 4” and pressure classes including Class 2000, 3000, 6000, and 9000. We offer these fittings in a variety of high-grade materials such as Carbon Steel (ASTM A105, A350 LF2), Stainless Steel (ASTM A182 F304, F316), Alloy Steel (F11, F22, F91), Duplex and Super Duplex Steel, and Nickel Alloys like Inconel and Monel. Our manufacturing process includes precision forging, heat treatment, and machining to ensure dimensional accuracy, mechanical strength, and corrosion resistance. Swage nipples are widely utilized across industries including oil and gas, petrochemical, chemical plants, and marine applications, where reliable and efficient piping connections are essential. Their robust construction and smooth flow transition capabilities make them ideal for high-pressure and high-temperature environments. By choosing our forged swage nipples, customers can ensure enhanced system performance, reduced maintenance costs, and long-lasting operational reliability.

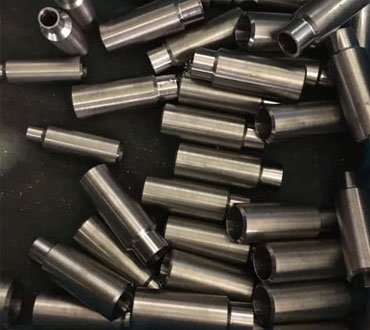

High-Performance Swage Nipples – Precision Forged to ASME B16.11 & MSS-SP-95 – Supplied with Threaded or Plain Ends – Concentric & Eccentric Designs – Sizes 1/8”–4”, Pressure Classes up to 9000# – Ideal for High-Pressure Piping Transitions.
Technical Index
Industrial Forged Swage Nipples Standard Specifications
| Swage Nipples Size Availability | 1/8” to 8”, DN8 to DN200 |
|---|---|
| Pressure Class Ratings | 2000LBS,3000LBS, 6000LBS, 9000LBS |
| Dimensions | ASME B16.11, MSS-SP-79, MSS-SP-83, MSS-SP-95, MSS-SP-97 |
| DIN | DIN 2986, 2999 |
| BS | BS 3799 |
| Thread | BSPP & BSPT Threads, NPTF & NPT Threads, UNF & UN Threads |
| Types | Concentric Swage Nipples, Eccentric Swage Nipples |
| Material Grades | Carbon Steel (A105, A350 LF2), Stainless Steel (304/304L, 316/316L), Alloy Steel (F11, F22), Duplex, Super Duplex, Inconel, Monel, Hastelloy |
| Coating / Surface Treatment | Black Paint, Anti-rust Coating, Galvanized, Transparent Oil |
| Ends | Threaded Ends (NPT/BSP), Socket Weld Ends |
| Tolerance | As per ASME B16.11 |
| Testing | PMI, Hydro Test, UT, RT, Visual & Dimensional Inspection |
| Certification | EN 10204 3.1 / 3.2, ISO 9001:2015, PED 2014/68/EU (where applicable) |
| Material Sourcing Regions | India, South Korea, Japan, USA, Germany, Italy |
| Global Export Markets | UAE, Saudi Arabia, Oman, Qatar, Bahrain, Kuwait, USA, Malaysia, Singapore, Egypt, Nigeria, South Africa, Kenya, Ghana, Turkey, Brazil, Mexico |
Industrial Swage Nipples Standards
| ASME B16.11 – Forged Steel Fittings, Socket-Welding and Threaded | BS 3799 – Screwed and Socket-Welding for the Petroleum Industry | MSS SP-79 – Socket-Welding Reducer Inserts | MSS SP-83 – Class 3000 Steel Pipe Unions, Socket-Welding and Threaded |
| MSS SP-95 – Swage(d) Nipples and Bull Plugs | MSS SP-97 – Integrally Reinforced Forged Branch Outlet Fittings | DIN 2986 – Threaded Fittings | DIN 2999 – Pipe Threads for Fittings (British Standard Pipe Threads) |
| ISO 49 – Malleable Iron Fittings, Threaded | ISO 7/1 – Pipe Threads Where Pressure-tight Joints Are Made on the Threads | EN 10241 – Steel Threaded Pipe Fittings | JIS B2316 – Japanese standard for forged pipe fittings. |
Forged Swage Nipples Material Grades and Standards
| Stainless Steel Swage Nipples | ASTM / ASME A/SA 182: F 304, 304L, 304H, 309S, 309H, 310S, 310H, 316, 316TI, 316H, 316L, 316LN, 317, 317L, 321, 321H, 347, 347H, 904L |
|---|---|
| Duplex Steel Swage Nipples | ASTM A182 / ASME SA182 UNS S31803, S32205. Werkstoff No. 1.4462 |
| Super Duplex Steel Swage Nipples | ASTM A182 / ASME SA182 UNS S32750, S32760, S32950. Werkstoff No. 1.4410 |
| Carbon Steel Swage Nipples | ASTM A105/A694/ A350 LF3/A350 LF2: F42, F46, F52, F56, F60, F65, F70 |
| Alloy Steel Swage Nipples | ASTM A182: F1, F5, F9, F11, F22, F91 |
| High Nickel Alloy Swage Nipples | ASTM / ASME SB 564 / 160 / 472: UNS 2200 (NICKEL 200), UNS 4400 (MONEL 400), UNS 8825 INCONEL (825), UNS 6600(INCONEL 600), UNS 6601 (INCONEL 601), UNS 6625 (INCONEL 625), UNS 10276 (HASTELLOY C 276), UNS 2201 (NICKEL 201), (ALLOY 20 / 20 CB 3) |
| Brass Swage Nipples | Brass CA 360, CA 345 and CA 377 / SAE J530, SAE J531 and ASA |
ASME B16.11 Forged Fittings Types
Forged Threaded Swage Nipples Industries & Applications

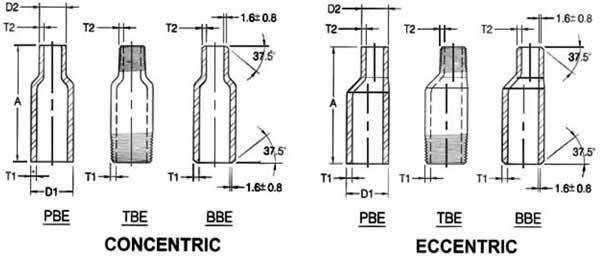

ASME B16.11 Forged Swage Nipples Dimensions
| Nominal Pipe Size (NPS) | Outside Diameter | End To End “A” | Wall Thickness | ||||||||
| Large End D1 | Small End D2 | T1 | T2 | ||||||||
| Sch40 (STD) | Sch80 (XS) | Sch160 | XXS | Sch40 (STD) | Sch80 (XS) | Sch160 | XXS | ||||
| 1/4”x1/8” | 13.7 | 10.3 | 57 | 2.2 | 3.0 | 3.7 | 6.1 | 1.7 | 2.4 | ||
| 3/8”x1/8” | 17.1 | 10.3 | 64 | 2.3 | 3.2 | 4.0 | 6.4 | 1.7 | 2.4 | ||
| 3/8”x1/4” | 17.1 | 13.7 | 64 | 2.3 | 3.2 | 4.0 | 6.4 | 2.2 | 3.0 | ||
| 1/2”x1/8” | 21.3 | 10.3 | 70 | 2.8 | 3.7 | 4.8 | 7.5 | 1.7 | 2.4 | ||
| 1/2”x1/4” | 21.3 | 13.7 | 70 | 2.8 | 3.7 | 4.8 | 7.5 | 2.2 | 3.0 | ||
| 1/2”x3/8” | 21.3 | 17.1 | 70 | 2.8 | 3.7 | 4.8 | 7.5 | 2.3 | 3.2 | ||
| 3/4”x1/8” | 26.7 | 10.3 | 76 | 2.9 | 3.9 | 5.6 | 7.8 | 1.7 | 2.4 | ||
| 3/4’x1/4” | 26.7 | 13.7 | 76 | 2.9 | 3.9 | 5.6 | 7.8 | 2.2 | 3.0 | ||
| 3/4”x3/8” | 26.7 | 17.1 | 76 | 2.9 | 3.9 | 5.6 | 7.8 | 2.3 | 3.2 | ||
| 3/4”x1/2” | 26.7 | 21.3 | 76 | 2.9 | 3.9 | 5.6 | 7.8 | 2.8 | 3.7 | 4.8 | 7.5 |
| 1”x1/8” | 33.4 | 10.3 | 89 | 3.4 | 4.5 | 6.4 | 9.1 | 1.7 | 2.4 | ||
| 1”x1/4” | 33.4 | 13.7 | 89 | 3.4 | 4.5 | 6.4 | 9.1 | 2.2 | 3.0 | ||
| 1”x3/8” | 33.4 | 17.1 | 89 | 3.4 | 4.5 | 6.4 | 9.1 | 2.3 | 3.2 | ||
| 1”x1/2” | 33.4 | 21.3 | 89 | 3.4 | 4.5 | 6.4 | 9.1 | 2.8 | 3.7 | 4.8 | 7.5 |
| 1”x3/4” | 33.4 | 26.7 | 89 | 3.4 | 4.5 | 6.4 | 9.1 | 2.9 | 3.9 | 5.6 | 7.8 |
| 1-1/4”x1/8” | 42.2 | 10.3 | 102 | 3.6 | 4.9 | 6.4 | 9.7 | 1.7 | 2.4 | ||
| 1-1/4”x1/4” | 42.2 | 13.7 | 102 | 3.6 | 4.9 | 6.4 | 9.7 | 2.2 | 3.0 | ||
| 1-1/4”x3/8” | 42.2 | 17.1 | 102 | 3.6 | 4.9 | 6.4 | 9.7 | 2.3 | 3.2 | ||
| 1-1/4”x1/2” | 42.2 | 21.3 | 102 | 3.6 | 4.9 | 6.4 | 9.7 | 2.8 | 3.7 | 4.8 | 7.5 |
| 1-1/4”x3/4” | 42.2 | 26.7 | 102 | 3.6 | 4.9 | 6.4 | 9.7 | 2.9 | 3.9 | 5.6 | 7.8 |
| 1-1/4”x1” | 42.2 | 33.4 | 102 | 3.6 | 4.9 | 6.4 | 9.7 | 3.4 | 4.5 | 6.4 | 9.1 |
| 1-1/2”x1/8” | 48.3 | 10.3 | 114 | 3.7 | 5.1 | 7.1 | 10.2 | 1.7 | 2.4 | ||
| 1-1/2”x1/4” | 48.3 | 13.7 | 114 | 3.7 | 5.1 | 7.1 | 10.2 | 2.2 | 3.0 | ||
| 1-1/2”x3/8” | 48.3 | 17.1 | 114 | 3.7 | 5.1 | 7.1 | 10.2 | 2.3 | 3.2 | ||
| 1-1/2”x1/2” | 48.3 | 21.3 | 114 | 3.7 | 5.1 | 7.1 | 10.2 | 2.8 | 3.7 | 4.8 | 7.5 |
| 1-1/2”x3/4” | 48.3 | 26.7 | 114 | 3.7 | 5.1 | 7.1 | 10.2 | 2.9 | 3.9 | 5.6 | 7.8 |
| 1-1/2”x1” | 48.3 | 33.4 | 114 | 3.7 | 5.1 | 7.1 | 10.2 | 3.4 | 4.5 | 6.4 | 9.1 |
| 1-1/2”x1-1/4” | 48.3 | 42.2 | 114 | 3.7 | 5.1 | 7.1 | 10.2 | 3.6 | 4.9 | 6.4 | 9.7 |
| 2”x1/8” | 60.3 | 10.3 | 165 | 3.9 | 5.5 | 8.7 | 11.1 | 1.7 | 2.4 | ||
| 2”x1/4” | 60.3 | 13.7 | 165 | 3.9 | 5.5 | 8.7 | 11.1 | 2.2 | 3.0 | ||
| 2”x3/8” | 60.3 | 17.1 | 165 | 3.9 | 5.5 | 8.7 | 11.1 | 2.3 | 3.2 | ||
| 2”x1/2” | 60.3 | 21.3 | 165 | 3.9 | 5.5 | 8.7 | 11.1 | 2.8 | 3.7 | 4.8 | 7.5 |
Concentric Swage Nipple Dimensions
| NPS | O.D. | End To End “A” | Thickness Of Wall | ||||||||
| Large End D1 | Small End D2 | T1 | T2 | ||||||||
| Schedule 40 (STD) | Schedule 80 (XS) | Schedule 160 | XXS | Schedule 40 (STD) | Schedule 80 (XS) | Schedule 160 | XXS | ||||
| 2”x3/4” | 60.3 | 26.7 | 165 | 3.9 | 5.5 | 8.7 | 11.1 | 2.9 | 3.9 | 5.6 | 7.8 |
| 2”x1” | 60.3 | 33.4 | 165 | 3.9 | 5.5 | 8.7 | 11.1 | 3.4 | 4.5 | 6.4 | 9.1 |
| 2”x1-1/4” | 60.3 | 42.2 | 165 | 3.9 | 5.5 | 8.7 | 11.1 | 3.6 | 4.9 | 6.4 | 9.7 |
| 2”x1-1/2” | 60.3 | 48.3 | 165 | 3.9 | 5.5 | 8.7 | 11.1 | 3.7 | 5.1 | 7.1 | 10.2 |
| 2-1/2”x1/8” | 73.0 | 10.3 | 178 | 5.2 | 7.0 | 9.5 | 14.0 | 1.7 | 2.4 | ||
| 2-1/2”x1/4” | 73.0 | 13.7 | 178 | 5.2 | 7.0 | 9.5 | 14.0 | 2.2 | 3.0 | ||
| 2-1/2”x3/8” | 73.0 | 17.1 | 178 | 5.2 | 7.0 | 9.5 | 14.0 | 2.3 | 3.2 | ||
| 2-1/2”x1/2” | 73.0 | 21.3 | 178 | 5.2 | 7.0 | 9.5 | 14.0 | 2.8 | 3.7 | 4.8 | 7.5 |
| 2-1/2”x3/4” | 73.0 | 26.7 | 178 | 5.2 | 7.0 | 9.5 | 14.0 | 2.9 | 3.9 | 5.6 | 7.8 |
| 2-1/2”x1” | 73.0 | 33.4 | 178 | 5.2 | 7.0 | 9.5 | 14.0 | 3.4 | 4.5 | 6.4 | 9.1 |
| 2-1/2”x1-1/4” | 73.0 | 42.2 | 178 | 5.2 | 7.0 | 9.5 | 14.0 | 3.6 | 4.9 | 6.4 | 9.7 |
| 2-1/2”x1-1/2” | 73.0 | 48.3 | 178 | 5.2 | 7.0 | 9.5 | 14.0 | 3.7 | 5.1 | 7.1 | 10.2 |
| 2-1/2”x2” | 73.0 | 60.3 | 178 | 5.2 | 7.0 | 9.5 | 14.0 | 3.9 | 5.5 | 8.7 | 11.1 |
| 3”x1/8” | 88.9 | 10.3 | 203 | 5.5 | 7.6 | 11.1 | 15.2 | 1.7 | 2.4 | 3.2 | 4.8 |
| 3”x1/4” | 88.9 | 13.7 | 203 | 5.5 | 7.6 | 11.1 | 15.2 | 2.2 | 3.0 | 3.7 | 6.1 |
| 3”x3/8” | 88.9 | 17.1 | 203 | 5.5 | 7.6 | 11.1 | 15.2 | 2.3 | 3.2 | 4.0 | 6.4 |
| 3”x1/2” | 88.9 | 21.3 | 203 | 5.5 | 7.6 | 11.1 | 15.2 | 2.8 | 3.7 | 4.8 | 7.5 |
| 3”x3/4” | 88.9 | 26.7 | 203 | 5.5 | 7.6 | 11.1 | 15.2 | 2.9 | 3.9 | 5.6 | 7.8 |
| 3”x1” | 88.9 | 33.4 | 203 | 5.5 | 7.6 | 11.1 | 15.2 | 3.4 | 4.5 | 6.4 | 9.1 |
| 3”x1-1/4” | 88.9 | 42.2 | 203 | 5.5 | 7.6 | 11.1 | 15.2 | 3.6 | 4.9 | 6.4 | 9.7 |
| 3”x1-1/2” | 88.9 | 48.3 | 203 | 5.5 | 7.6 | 11.1 | 15.2 | 3.7 | 5.1 | 7.1 | 10.2 |
| 3”x2” | 88.9 | 60.3 | 203 | 5.5 | 7.6 | 11.1 | 15.2 | 3.9 | 5.5 | 8.7 | 11.1 |
| 3”x2-1/2” | 88.9 | 73.0 | 203 | 5.5 | 7.6 | 11.1 | 15.2 | 5.2 | 7.0 | 9.5 | 14.0 |
| 3-1/2”x1/8” | 101.6 | 10.3 | 203 | 5.7 | 8.1 | 1.7 | 2.4 | ||||
| 3-1/2”x1/4” | 101.6 | 13.7 | 203 | 5.7 | 8.1 | 2.2 | 3.0 | ||||
| 3-1/2”x3/8” | 101.6 | 17.1 | 203 | 5.7 | 8.1 | 2.3 | 3.2 | ||||
| 3-1/2”x1/2” | 101.6 | 21.3 | 203 | 5.7 | 8.1 | 2.8 | 3.7 | 4.8 | 7.5 | ||
| 3-1/2”x3/4” | 101.6 | 26.7 | 203 | 5.7 | 8.1 | 2.9 | 3.9 | 5.6 | 7.8 | ||
| 3-1/2”x1” | 101.6 | 33.4 | 203 | 5.7 | 8.1 | 3.4 | 4.5 | 6.4 | 9.1 | ||
| 3-1/2”x1-1/4” | 101.6 | 42.2 | 203 | 5.7 | 8.1 | 3.6 | 4.9 | 6.4 | 9.7 | ||
Eccentric Swage Nipple Dimensions
| NPS | O.D. | End To End “A” | Thickness Of Wall | ||||||||
| Large End D1 | Small End D2 | T1 | T2 | ||||||||
| Schedule 40 (STD) | Schedule 80 (XS) | Schedule 160 | XXS | Schedule 40 (STD) | Schedule 80 (XS) | Schedule 160 | XXS | ||||
| 3-1/2”x1-1/2” | 101.6 | 48.3 | 203 | 5.7 | 8.1 | 3.7 | 5.1 | 7.1 | 10.2 | ||
| 3-1/2”x2” | 101.6 | 60.3 | 203 | 5.7 | 8.1 | 3.9 | 5.5 | 8.7 | 11.1 | ||
| 3-1/2”x2-1/2” | 101.6 | 73.0 | 203 | 5.7 | 8.1 | 5.2 | 7.0 | 9.5 | 14.0 | ||
| 3-1/2”x3” | 101.6 | 88.9 | 203 | 5.7 | 8.1 | 5.5 | 7.6 | 11.1 | 15.2 | ||
| 4”x1/4” | 114.3 | 13.7 | 229 | 6.0 | 8.6 | 13.5 | 17.1 | 2.2 | 3.0 | ||
| 4”x3/8” | 114.3 | 17.1 | 229 | 6.0 | 8.6 | 13.5 | 17.1 | 2.3 | 3.2 | ||
| 4”x1/2” | 114.3 | 21.3 | 229 | 6.0 | 8.6 | 13.5 | 17.1 | 2.8 | 3.7 | 4.8 | 7.5 |
| 4”x3/4” | 114.3 | 26.7 | 229 | 6.0 | 8.6 | 13.5 | 17.1 | 2.9 | 3.9 | 5.6 | 7.8 |
| 4”x1” | 114.3 | 33.4 | 229 | 6.0 | 8.6 | 13.5 | 17.1 | 3.4 | 4.5 | 6.4 | 9.1 |
| 4”x1-1/4” | 114.3 | 42.2 | 229 | 6.0 | 8.6 | 13.5 | 17.1 | 3.6 | 4.9 | 6.4 | 9.7 |
| 4”x1-1/2” | 114.3 | 48.3 | 229 | 6.0 | 8.6 | 13.5 | 17.1 | 3.7 | 5.1 | 7.1 | 10.2 |
| 4”x2” | 114.3 | 60.3 | 229 | 6.0 | 8.6 | 13.5 | 17.1 | 3.9 | 5.5 | 8.7 | 11.1 |
| 4”x2-1/2” | 114.3 | 73.0 | 229 | 6.0 | 8.6 | 13.5 | 17.1 | 5.2 | 7.0 | 9.5 | 14.0 |
| 4”x3” | 114.3 | 88.9 | 229 | 6.0 | 8.6 | 13.5 | 17.1 | 5.5 | 7.6 | 11.1 | 15.2 |
| 4”x3-1/2” | 114.3 | 101.6 | 229 | 6.0 | 8.6 | 13.5 | 17.1 | 5.7 | 8.1 | ||
Weight Chart of ANSI B16.11 Forged Swage Nipples
| Normal Pipe Size | A | B | QTY | Weight In KG |
|---|---|---|---|---|
| ¼ | 0.81 | 0.88 | 160 | 0.20 |
| ⁄ | 0.97 | 1.00 | 130 | 0.26 |
| ½ | 1.12 | 1.31 | 100 | 0.57 |
| ¾ | 1.31 | 1.5 | 75 | 0.71 |
| 1 | 1.5 | 1.81 | 40 | 1.08 |
| 1 ¼ | 1.75 | 2.19 | 25 | 1.68 |
| 1 ½ | 2.00 | 2.44 | 18 | 2.38 |
| 2 | 2.38 | 2.97 | 10 | 3.55 |
| 2 ½ | 3.00 | 3.62 | 4 | 6.22 |
| 3 | 3.38 | 4.31 | 2 | 10.36 |
| 4 | 4.19 | 5.75 | 1 | 23.91 |
