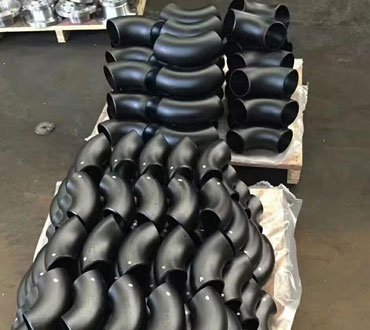

ISO Certified Stockist of ASTM A860 WPHY 42/46/52/60/65/70 High-Yield Carbon Steel Fittings – Seamless & Welded - Buttweld Elbows, Tees, Reducers– Full Range of Schedules & Sizes Ready for Dispatch.
We are an ISO 9001:2015 certified manufacturer and exporter of high-performance pipe fittings, specializing in ASTM A860 WPHY 42 to 70 grades. Backed by years of industry experience, we offer a complete range of buttweld pipe fittings including elbows, tees, reducers, caps, crosses, and stub ends. These fittings are manufactured with precision engineering to meet demanding specifications in oil & gas, offshore, petrochemical, and power sectors. With robust inventory and efficient logistics, we ensure rapid delivery to both domestic and international clients.
ASTM A860 WPHY (Wrought Pipe High-Yield) grades such as 42, 46, 52, 60, 65, and 70 are produced using high-strength low-alloy (HSLA) steel, conforming to standards like ASME B16.9, MSS SP-75, and ANSI/ASME B36.10M. These fittings are available in sizes from ½” NB to 48” NB, with wall thickness ranging from SCH 10 to XXS. Products can be supplied in seamless or welded construction with bevel ends or plain ends as per customer requirements. All fittings undergo NDT, hydro testing, and third-party inspection as per project specifications.
WPHY fittings are primarily used in high-pressure transmission pipelines, natural gas processing, onshore/offshore facilities, refineries, and chemical plants. These grades are preferred for critical operations that demand high yield strength, excellent impact resistance, and long-term reliability under stress. The A860 WPHY series supports structural integrity in both standard and sour service environments, and are often used in conjunction with API line pipe systems (e.g., API 5L X60, X65).
Our fittings offer exceptional mechanical strength, dimensional precision, and corrosion resistance. Key benefits include high yield-to-tensile ratio, superior weldability, and excellent pressure handling capacity. We provide full documentation, including Mill Test Certificates (MTCs), NACE compliance, IBR approval, and third-party inspection reports. All products are securely packed for global delivery and dispatched with customs-ready export documentation, making us a trusted partner for clients worldwide.
Stockist of ASTM A860 WPHY 42/46/52/60/65/70 Fittings – Carbon Steel Buttweld Components in All Sizes & Schedules – Elbows, Tees, Reducers, Caps – As per ASME B16.9 & MSS SP-75 – Sizes ½” to 48”, SCH 10 to XXS.
Technical Index
Industrial Carbon Steel ASTM A860 WPHY 42 Specifications
| Material Grade | ASTM A860 WPHY 42 / 46 / 52 / 60 / 65 / 70 |
|---|---|
| Available Product Types | Buttweld Fittings (Elbows, Tees, Reducers, Caps, Stub Ends) |
| Size Range | ½” NB to 24” NB (Seamless), ½” NB to 48” NB (Welded) |
| Wall Thickness | SCH 10, SCH 20, SCH 40, SCH 80, SCH 120, SCH 160, XXS |
| Standard Specifications | ASTM A860 / ASME SA860, ANSI B36.10 |
| Manufacturing Standards | ASME B16.9, MSS SP-75, EN 10253, DIN 2605/2615/2616, ISO 3419, JIS B2312 |
| Types | 90° Elbow (LR/SR), 45° Elbow, Equal Tee, Reducing Tee, Concentric Reducer, Eccentric Reducer, End Cap, Stub End |
| Form | Seamless, Welded, Fabricated |
| Heat Treatment | Normalized, Quenched & Tempered (Q&T) as per grade |
| Mechanical Properties | Tensile Strength: 485–760 MPa (varies by grade) Yield Strength: 290–550 MPa (varies by grade) Elongation: ≥20% |
| Pressure Ratings | As per ASME B16.9, MSS SP-75 – based on wall thickness and grade |
| Testing & Certifications | EN 10204 3.1 & 3.2, NACE MR0175, IBR Approved, PMI, UT, Hydro Test, Radiography, MPT |
| Surface Finish | Black Coated, Anti-Rust Coated, Bare, Pickled |
| End Connection Types | Beveled Ends (BE), Plain Ends (PE) |
| Manufacturing Capabilities | Hot Induction Bending, Cold Forming, CNC Beveling, Precision Fabrication |
| Raw Material Sources | India, Japan, South Korea, USA, Germany, Italy |
| Export Destinations | USA, Canada, UAE, Saudi Arabia, Qatar, Oman, Nigeria, South Africa, Indonesia, Vietnam, Europe |
Industrial ASTM A860 WPHY 46 Carbon Steel Standards
| ANSI/ASME B16.9 – Factory-Made Wrought Steel Buttwelding Fittings | ANSI/ASME B16.28 – Wrought Steel Short Radius Elbows and Returns | ANSI/ASME B16.25 – Buttwelding Ends(beval standards) | MSS SP-43 – Wrought and fabricated Butt welding Fittings for Light Wall Applications |
| MSS SP-75 – High Test Wrought Butt welding Fittings | DIN 2616 – Butt welding Pipe Fittings: Reducers | DIN 2617 – Butt welding Pipe Fittings: Caps | DIN28011 – Dished Ends(used in pressure vessels) |
| EN10253-1 Butt-welding Pipe Fittings(Non Alloy Steels) | EN10253-2 Butt-welding Pipe Fittings(Stainless/Alloy Steels) |
ASTM A860 High-Yield Carbon Steel International Standards
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
|---|---|---|---|---|---|---|---|
| WPHY 42 | – | K31242 | – | 4360 43A | 10G2 | E24-2 | S275JR |
| WPHY 46 | – | K12446 | – | 4360 43C | 10G2S | E28-2 | S275J2G3 |
| WPHY 52 | – | K12822 | – | 4360 50C | 10G2F | E36-2 | S355J2G3 |
| WPHY 60 | – | K03014 | – | 4360 55C | 15GS | E42-2 | P355N |
| WPHY 65 | – | K03015 | – | 4360 60C | 16GS | E460 | P460N |
| WPHY 70 | – | K03016 | – | 4360 65C | 17G1S | E52-3 | P460NL1 |
ASTM A860 WPHY 42/46/52/60/65/70 Chemical Composition
| Grade | C (%) | Mn (%) | P (%) | S (%) | Si (%) | Cr (%) | Mo (%) | Ni (%) | V (%) |
|---|---|---|---|---|---|---|---|---|---|
| WPHY 42 | 0.26 max | 0.87–1.60 | 0.030 max | 0.030 max | 0.13–0.45 | 0.30 max | 0.12 max | 0.20 max | 0.08 max |
| WPHY 46 | 0.26 max | 1.00–1.60 | 0.030 max | 0.030 max | 0.13–0.45 | 0.30 max | 0.12 max | 0.20 max | 0.08 max |
| WPHY 52 | 0.26 max | 1.00–1.75 | 0.030 max | 0.030 max | 0.13–0.45 | 0.30 max | 0.15 max | 0.20 max | 0.08 max |
| WPHY 60 | 0.26 max | 1.00–1.75 | 0.030 max | 0.030 max | 0.13–0.45 | 0.30 max | 0.15 max | 0.20 max | 0.08 max |
| WPHY 65 | 0.26 max | 1.00–1.75 | 0.030 max | 0.030 max | 0.13–0.45 | 0.30 max | 0.15 max | 0.20 max | 0.08 max |
| WPHY 70 | 0.26 max | 1.00–1.75 | 0.030 max | 0.030 max | 0.13–0.45 | 0.30 max | 0.15 max | 0.20 max | 0.08 max |
Carbon Steel WPHY 42/46/52/60/65/70 Mechanical Properties
| Grade | Tensile Strength (MPa) | Yield Strength (MPa) | Elongation (%) | Hardness (HBW) |
|---|---|---|---|---|
| WPHY 42 | 415 min | 290 min | ≥20 | 187 max |
| WPHY 46 | 450 min | 317 min | ≥20 | 197 max |
| WPHY 52 | 455 min | 359 min | ≥20 | 207 max |
| WPHY 60 | 485 min | 414 min | ≥20 | 217 max |
| WPHY 65 | 517 min | 448 min | ≥20 | 225 max |
| WPHY 70 | 570 min | 485 min | ≥20 | 235 max |
ASTM A860 Carbon Steel Types
ASTM A860 WPHY 42/46/52/60/65/70 Carbon Steel Industries & Applications
ASTM A860 WPHY Carbon Steel Buttweld Fittings Dimensions
| NOMINAL PIPE SIZE | ALL FITTINGS | ALL FITTINGS | ALL FITTINGS | ELBOWS AND TEES | 180 DEG RETURN BENDS | 180 DEG RETURN BENDS | 180 DEG RETURN BENDS | REDUCERS | CAPS |
|---|---|---|---|---|---|---|---|---|---|
| NPS | O.D. at Bevel (1), (2) | I.D. at End (1), (3), (4) |
Wall Thickness (3) | Centre-to-End Dimension A,B,C,M | Centre-to-Centre O | Back-to-Face K | Alignment of Ends U | Overall Length H | Overall Length E |
| ½ to 2½ | 0.06 -0.03 |
0.03 | Not less than 87.5% of nominal thickness | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.12 |
| 3 to 3 ½ | 0.06 | 0.06 | Not less than 87.5% of nominal thickness | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.12 |
| 4 | 0.06 | 0.06 | Not less than 87.5% of nominal thickness | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.12 |
| 5 to 8 | 0.09 -0.06 |
0.06 | Not less than 87.5% of nominal thickness | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.25 |
| 10 to 18 | 0.16 -0.12 |
0.12 | Not less than 87.5% of nominal thickness | 0.09 | 0.38 | 0.25 | 0.06 | 0.09 | 0.25 |
| 20 to 24 | 0.25 -0.19 |
0.19 | Not less than 87.5% of nominal thickness | 0.09 | 0.38 | 0.25 | 0.06 | 0.09 | 0.25 |
| 26 to 30 | 0.25 -0.19 |
0.19 | Not less than 87.5% of nominal thickness | 0.12 | … | … | … | 0.19 | 0.38 |
| 32 to 48 | 0.25 -0.19 |
0.19 | Not less than 87.5% of nominal thickness | 0.19 | … | … | … | 0.19 | 0.38 |
ASTM A860 WPHY 42/46/52/60/65/70 Carbon Steel Thickness Chart
| Product range and theoretical weights (kg) | |||||||||
| DN | Schedule 10S | Schedule 40S | Schedule 80S | ||||||
| 90° Elbow | 45° Elbow | Equal tee | 90° Elbow | 45° Elbow | Equal tee | 90° Elbow | 45° Elbow | Equal tee | |
| 8 | 0.02 | 0.01 | 0.03 | 0.03 | 0.02 | 0.06 | 0.04 | 0.03 | 0.07 |
| 10 | 0.03 | 0.02 | 0.05 | 0.03 | 0.02 | 0.03 | 0.06 | 0.04 | 0.09 |
| 15 | 0.06 | 0.03 | 0.09 | 0.08 | 0.04 | 0.10 | 0.10 | 0.05 | 0.14 |
| 20 | 0.07 | 0.03 | 0.13 | 0.08 | 0.04 | 0.17 | 0.11 | 0.05 | 0.20 |
| 25 | 0.14 | 0.08 | 0.28 | 0.15 | 0.11 | 0.29 | 0.22 | 0.14 | 0.38 |
| 32 | 0.23 | 0.11 | 0.49 | 0.26 | 0.17 | 0.59 | 0.40 | 0.23 | 0.68 |
| 40 | 0.30 | 0.17 | 0.68 | 0.40 | 0.23 | 0.86 | 0.51 | 0.29 | 1.02 |
| 50 | 0.50 | 0.25 | 0.85 | 0.70 | 0.4 | 1.28 | 0.91 | 0.59 | 1.59 |
| 65 | 0.85 | 0.48 | 1.41 | 1.40 | 0.77 | 2.19 | 1.81 | 0.99 | 3.13 |
| 80 | 1.25 | 0.63 | 1.77 | 2.20 | 1.08 | 3.31 | 2.97 | 1.50 | 4.45 |
| 90 | 1.70 | 0.75 | 2.67 | 2.83 | 1.42 | 4.08 | 4.00 | 2.00 | 5.44 |
| 100 | 2.10 | 1.08 | 3.46 | 4.47 | 2.09 | 5.27 | 6.18 | 2.81 | 7.71 |
| 150 | 5.45 | 2.72 | 8.07 | 10.89 | 5.44 | 10.99 | 16.32 | 8.16 | 13.61 |
| 200 | 10.20 | 5.33 | 15.65 | 21.54 | 10.77 | 20.91 | 33.11 | 16.56 | 28.12 |
| 250 | 18.15 | 9.75 | 26.46 | 38.56 | 19.27 | 35.38 | 51.71 | 25.86 | 49.90 |
| 300 | 25.80 | 13.62 | 39.46 | 59.42 | 29.71 | 62.14 | 79.38 | 39.69 | 83.91 |
| Product range and theoretical weights (kg) | |||||||||
| DN | Schedule 10S | Schedule 40S | Schedule 80S | ||||||
| Con reducer | Ecc reducer | Reducing tee | Con reducer | Ecc reducer | Reducing tee | Con reducer | Ecc reducer | Reducing tee | |
| 40x.25 | 0.19 | 0.19 | 0.60 | 0.26 | 0.26 | 0.76 | 0.34 | 0.34 | 0.90 |
| 50×25 | 0.28 | 0.28 | 0.73 | 0.40 | 0.40 | 1.10 | 0.54 | 0.54 | 1.37 |
| 50×40 | 0.31 | 0.31 | 0.76 | 0.45 | 0.45 | 1.15 | 0.59 | 0.59 | 1.43 |
| 80x.50 | 0.55 | 0.55 | 1.56 | 1.00 | 1.00 | 2.91 | 1.79 | 1.79 | 3.91 |
| 100×50 | 0.78 | 0.78 | 2.94 | 1.50 | 1.50 | 4.48 | 1.95 | 1.95 | 6.55 |
| 100×80 | 0.87 | 0.87 | 3.04 | 1.74 | 1.74 | 4.64 | 2.33 | 2.33 | 6.79 |
| 150×80 | 1.82 | 1.82 | 6.86 | 3.95 | 3.95 | 9.68 | 5.51 | 5.51 | 11.57 |
| 150×100 | 1.96 | 1.96 | 7.10 | 4.07 | 4.07 | 11.94 | 5.96 | 5.96 | 11.97 |
| 200×100 | 3.01 | 3.01 | 13.46 | 6.55 | 6.55 | 17.98 | 9.23 | 9.23 | 24.18 |
| 200×150 | 3.19 | 3.19 | 14.08 | 6.74 | 6.74 | 18.82 | 10.12 | 10.12 | 25.31 |
Major Industrial ASTM A860 Carbon Steel Fittings Export Countries
United Arab Emirates (UAE), Jordan, Bahrain, Kuwait, Oman, Qatar, Saudi Arabia, United States of America (USA), Singapore, Malaysia, Azerbaijan, Armenia, Georgia, Egypt, Algeria, Nigeria, South Africa, Kenya, Morocco, Ethiopia, Ghana, Tanzania, Sudan, Uganda, Angola.
