Titanium Grade 5 Fittings – Including Flanges, Elbows, Tees, Olets – ASME B16.5/B16.9/B16.11 – Exporter to 40+ Countries.
Titanium Grade 5, also known as Ti-6Al-4V, is an alpha-beta titanium alloy that offers an excellent combination of strength, corrosion resistance, and workability. It is the most commonly used titanium alloy globally, particularly in applications requiring superior mechanical performance and low weight. This alloy contains approximately 6% aluminum and 4% vanadium, which enhance its high-temperature strength and oxidation resistance. Titanium Grade 5 performs reliably in environments where both strength-to-weight ratio and resistance to extreme conditions are critical, making it ideal for industries like aerospace, defense, medical, and offshore engineering.
We supply a complete range of Titanium Grade 5 pipe fittings and flanges, including buttweld elbows, tees, reducers, end caps, stub ends, as well as forged socket weld and threaded fittings like couplings, unions, and bushings. Additionally, we offer outlet fittings such as weldolets, sockolets, elbolets, and threadolets, widely used in high-performance piping systems. All components conform to international standards like ASME B16.5, ASME B16.9, ASME B16.11, and MSS SP-97, and are available in pressure ratings from 150# to 600# with sizes ranging from ½” NB to 24” NB.
Titanium Gr.5 features outstanding mechanical properties, including a tensile strength of 895 MPa and yield strength of 828 MPa, while retaining excellent ductility and fatigue resistance. It maintains its strength at elevated temperatures up to 400°C and exhibits exceptional resistance to corrosion in seawater, chloride environments, and oxidizing agents. This makes it a preferred choice in heat exchangers, condensers, pressure vessels, and critical aerospace structures. The alloy is also biocompatible, which supports its use in medical implants and surgical tools.
All Titanium (Ti-6Al-4V) products are manufactured under strict quality control processes and in compliance with ISO 9001:2015 standards. Each fitting and flange undergoes rigorous inspection, including Positive Material Identification (PMI), ultrasonic testing, hydrostatic testing, and dimension verification. We maintain ready stock for fast delivery and offer full traceability with mill test certificates. With a strong global network, we serve major industrial clients across North America, Europe, the Middle East, and Asia-Pacific regions.

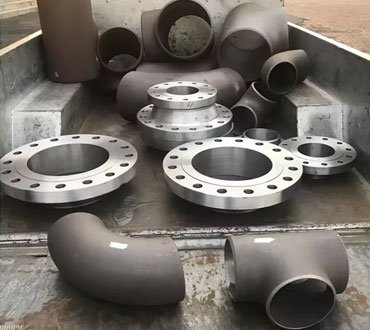

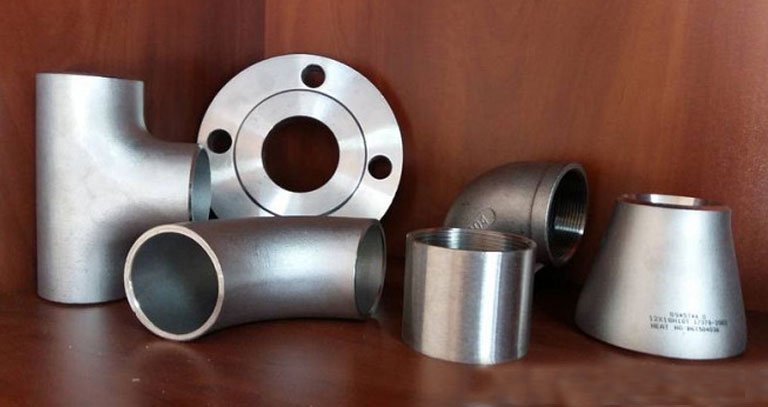

High-Strength Titanium Grade 5 Flanges & Fittings – Buttweld, Forged & Olet Types - Weldolet, Sockolet, Threadolet – ½” to 24” NB, Pressure Class 150#–600#.
Technical Index
Industrial Titanium Grade 5 Specifications
| Material Grade | Titanium Grade 5 / UNS R56400 / W.Nr. 3.7165 |
|---|---|
| Available Product Types | Flanges, Buttweld Fittings, Forged Fittings, Olets |
| Flanges Size Range | ½” (15 NB) to 24” (600 NB) |
| Class | 150, 300, 600, 900, 1500, 2500, PN6 to PN64 |
| Standard Specifications | ASTM B363, B381 / ASME SB363, SB381 |
| Standards | ASME B16.5, B16.47 Series A & B, B16.48, EN 1092-1, DIN, ISO 7005-1, MSS SP-44, API 605 |
| Types | Weld Neck, Slip-On, Socket Weld, Threaded, Blind, Lap Joint, RTJ, Long Weld Neck, Reducing, Expander, Orifice, Spectacle Blind, Spacer, Paddle Blank, RF, FF |
| Buttweld Fittings Size | ½” NB to 12” NB (seamless), ½” NB to 24” NB (welded) |
| Wall Thickness | SCH 10 to XXS |
| Standards | ASME B16.9, MSS SP-75, EN 10253, DIN 2605/2615/2616 |
| Types | Elbow (90°, 45°, LR, SR), Tee (Equal, Reducing), Reducer (Concentric, Eccentric), End Cap, Stub Ends |
| Forged Fittings Size | ½” NB to 4” NB (Socket Weld & Threaded) |
| Class | 2000, 3000, 6000, 9000 (psi) |
| Standards | ASME B16.11, MSS SP-83, MSS SP-95 |
| Types | 90°/45° Elbow, Tee, Cross, Couplings, Unions, Caps, Hex Bushings, Plugs, Bosses, Nipples, Swages |
| Olets (Outlet Fittings) Size | ½” to 24” Branch | Run Pipe up to 36” |
| Class | 3000#, 6000#, 9000# |
| Standards | MSS SP-97, ASME B16.11, ANSI, DIN, JIS (Custom) |
| Types | Weldolet, Sockolet, Threadolet, Elbolet, Latrolet, Nipolet, Sweepolet, Brazolet |
| End Connection Types | Buttweld, Socket Weld, Threaded (NPT/BSP), Flanged (RF, FF, RTJ) |
| Testing & Certifications | EN 10204 3.1/3.2, NACE MR0175, PMI, Ultrasonic, Radiography, MPI |
| Surface Finish Options | Pickled, Passivated, Bright Annealed, Coated (Zinc, Black) |
| Manufacturing Capabilities | Hot/Cold Forming, CNC Machining, Forging, Induction Bending, Fabrication |
| Raw Material Sources | USA, Germany, Japan, South Korea |
| Export Destinations | USA, UAE, Saudi Arabia, Qatar, Europe, South Africa, Singapore, Malaysia |
Industrial Titanium Grade 5 Standards
| ANSI/ASME B16.47 Flanges | ANSI/ASME B16.36 Flanges | ANSI/ASME B16.5 Flanges | Pr. EN1902-1 Flanges |
| DIN Flanges | JIS Flanges | BS 4504 Flanges | BS 10 Flanges |
| MSS SP-44 Flanges | JIS B2220 Flanges | KS B1503 Flanges | UNI Flanges |
| SABS/SANS 1123 Flanges | AS 2129, AS 4087 Flanges | ISO 9624, ISO 7005-1 Flanges | AWWA Flanges Standard |
| GOST Standard Flanges | API Flanges | AS/ANZ 4331.1 Flanges | Series A Flange |
| Series B Flange | SAE J518 Flanges | GB Flange | Norwegian Standard Flanges |
| ASME B16.11 – Forged Steel Fittings, Socket-Welding and Threaded | BS 3799 – Screwed and Socket-Welding for the Petroleum Industry | MSS SP-79 – Socket-Welding Reducer Inserts | MSS SP-83 – Class 3000 Steel Pipe Unions, Socket-Welding and Threaded |
| MSS SP-95 – Swage(d) Nipples and Bull Plugs | MSS SP-97 – Integrally Reinforced Forged Branch Outlet Fittings | DIN 2986 – Threaded Fittings | DIN 2999 – Pipe Threads for Fittings (British Standard Pipe Threads) |
| ISO 49 – Malleable Iron Fittings, Threaded | ISO 7/1 – Pipe Threads Where Pressure-tight Joints Are Made on the Threads | EN 10241 – Steel Threaded Pipe Fittings | JIS B2316 – Japanese standard for forged pipe fittings. |
| ANSI/ASME B16.9 – Factory-Made Wrought Steel Buttwelding Fittings | ANSI/ASME B16.28 – Wrought Steel Short Radius Elbows and Returns | ANSI/ASME B16.25 – Buttwelding Ends(beval standards) | MSS SP-43 – Wrought and fabricated Butt welding Fittings for Light Wall Applications |
| MSS SP-75 – High Test Wrought Butt welding Fittings | DIN 2616 – Butt welding Pipe Fittings: Reducers | DIN 2617 – Butt welding Pipe Fittings: Caps | DIN28011 – Dished Ends(used in pressure vessels) |
| EN10253-1 Butt-welding Pipe Fittings | EN10253-2 Butt-welding Pipe Fittings |
Titanium Grade 5 (Ti-6Al-4V) International Standards
| STANDARD | UNS | WERKSTOFF NR. |
| Titanium Gr 5 | R56400 | 3.7165 |
Titanium Grade 5 Chemical Composition
| Weight % | Ti | C | Fe | N | Al | O | V | H | Y | Other |
| Ti-6Al-4V | bal | 0.08 | 0.03 | 0.05 | 5.5-6.75 | 0.20 | 3.5-4.5 | 0.015 | 0.005 | 0.40 |
Titanium Grade 5 Mechanical Properties
| Element | Density | Melting Point | Yield Strength (0.2%Offset) | Tensile Strength | Elongation |
|---|---|---|---|---|---|
| Titanium Grade 5 Flanges | 4.43 g/cm3 | 1632 °C (2970 °F) | Psi – 128000 , MPa – 880 | Psi – 138000 , MPa – 950 | 14 % |
Titanium Grade 5 Types
Titanium Gr 5 (Ti-6Al-4V) Industries & Applications
Titanium Grade 5 (Ti-6Al-4V) Flange Size Chart
| NPS | O.D. of Flange | Flanges Thickness | Diameter of RF | Diameter of Hub at Base | Lengtd Tdru Hub | Bore or Diameter | Dia. of Hub at Bevel | Radius of Fillet | Deptd of Socket | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Welding (WN) Neck | Slip-On (SORF) Threaded (NPT) Socket (SWRF) | Lap Joint (Loose) | Slip-on (SORF) Socket (SWRF) | Lap Joint (Loose) | ||||||||
| O | Q | R | X | Y | Y | Y | W | B | H | r | Z | |
| 1/2 | 3-1/2 | 7/16 | 1-3/8 | 1-3/16 | 1-7/8 | 5/8 | 5/8 | .88 | .90 | .84 | 1/8 | 3/8 |
| 3/4 | 3-7/8 | 1/2 | 1-11/16 | 1-1/2 | 2-1/16 | 5/8 | 5/8 | 1.09 | 1.11 | 1.05 | 1/8 | 7/16 |
| 1 | 4-1/4 | 9/16 | 2 | 1-15/16 | 2-3/16 | 11/16 | 11/16 | 1.36 | 1.38 | 1.32 | 1/8 | 1/2 |
| 1-1/4 | 4-5/8 | 5/8 | 2-1/2 | 2-5/16 | 2-1/4 | 13/16 | 13/16 | 1.70 | 1.72 | 1.66 | 3/16 | 9/16 |
| 1-1/2 | 5 | 11/16 | 2-7/8 | 2-9/16 | 2-7/16 | 7/8 | 7/8 | 1.95 | 1.97 | 1.90 | 1/4 | 5/8 |
| 2 | 6 | 3/4 | 3-5/8 | 3-1/16 | 2-1/2 | 1 | 1 | 2.44 | 2.46 | 2.38 | 5/16 | 11/16 |
| 2-1/2 | 7 | 7/8 | 4-1/8 | 3-9/16 | 2-3/4 | 1-1/8 | 1-1/8 | 2.94 | 2.97 | 2.88 | 5/16 | 3/4 |
| 3 | 7-1/2 | 15/16 | 5 | 4-1/4 | 2-3/4 | 1-3/16 | 1-3/16 | 3.57 | 3.60 | 3.50 | 3/8 | 13/16 |
| 3-1/2 | 8-1/2 | 15/16 | 5-1/2 | 4-13/16 | 2-13/16 | 1-1/4 | 1-1/4 | 4.07 | 4.10 | 4.00 | 3/8 | 7/8 |
| 4 | 9 | 15/16 | 6-3/16 | 5-5/16 | 3 | 1-5/16 | 1-5/16 | 4.57 | 4.60 | 4.50 | 7/16 | 15/16 |
| 5 | 10 | 15/16 | 7.5/16 | 6-7/16 | 3-1/2 | 1-7/16 | 1-7/16 | 5.66 | 5.69 | 5.56 | 7/16 | 15/16 |
| 6 | 11 | 1 | 8-1/2 | 7-9/16 | 3-1/2 | 1-9/16 | 1-9/16 | 6.72 | 6.75 | 6.63 | 1/2 | 1-1/16 |
| 8 | 13-1/2 | 1-1/8 | 10-5/8 | 9-11/16 | 4 | 1-3/4 | 1-3/4 | 8.72 | 8.75 | 8.63 | 1/2 | 1-1/4 |
| 10 | 16 | 1-3/16 | 12-3/4 | 12 | 4 | 1-15/16 | 1-15/16 | 10.88 | 10.92 | 10.75 | 1/2 | 1-5/16 |
| 12 | 19 | 1-1/4 | 15 | 14-3/8 | 4-1/2 | 2-3/16 | 2-3/16 | 12.88 | 12.92 | 12.75 | 1/2 | 1-9/16 |
| 14 | 21 | 1-3/8 | 16-1/4 | 15-3/4 | 5 | 2-1/4 | 3-1/8 | 14.14 | 14.18 | 14.00 | 1/2 | 1-5/8 |
| 16 | 23-1/2 | 1-7/16 | 18-1/2 | 18 | 5 | 2-1/2 | 3-7/16 | 16.16 | 16.19 | 16.00 | 1/2 | 1-3/4 |
| 18 | 25 | 1-9/16 | 21 | 19-7/8 | 5-1/2 | 2-11/16 | 3-13/16 | 18.18 | 18.20 | 18.00 | 1/2 | 1-15/16 |
| 20 | 27-1/2 | 1-11/16 | 23 | 22 | 5-11/16 | 2-7/8 | 4-1/16 | 20.20 | 20.25 | 20.00 | 1/2 | 2-1/8 |
| 24 | 32 | 1-7/8 | 27-1/4 | 26-1/8 | 6 | 3-1/4 | 4-3/8 | 24.25 | 24.25 | 24.00 | 1/2 | 2-1/2 |
Titanium Gr 5 Buttweld Fittings Dimensions
| Product range and theoretical weights (kg) | |||||||||
| DN | Schedule 10S | Schedule 40S | Schedule 80S | ||||||
| 90° Elbow | 45° Elbow | Equal tee | 90° Elbow | 45° Elbow | Equal tee | 90° Elbow | 45° Elbow | Equal tee | |
| 8 | 0.02 | 0.01 | 0.03 | 0.03 | 0.02 | 0.06 | 0.04 | 0.03 | 0.07 |
| 10 | 0.03 | 0.02 | 0.05 | 0.03 | 0.02 | 0.03 | 0.06 | 0.04 | 0.09 |
| 15 | 0.06 | 0.03 | 0.09 | 0.08 | 0.04 | 0.10 | 0.10 | 0.05 | 0.14 |
| 20 | 0.07 | 0.03 | 0.13 | 0.08 | 0.04 | 0.17 | 0.11 | 0.05 | 0.20 |
| 25 | 0.14 | 0.08 | 0.28 | 0.15 | 0.11 | 0.29 | 0.22 | 0.14 | 0.38 |
| 32 | 0.23 | 0.11 | 0.49 | 0.26 | 0.17 | 0.59 | 0.40 | 0.23 | 0.68 |
| 40 | 0.30 | 0.17 | 0.68 | 0.40 | 0.23 | 0.86 | 0.51 | 0.29 | 1.02 |
| 50 | 0.50 | 0.25 | 0.85 | 0.70 | 0.4 | 1.28 | 0.91 | 0.59 | 1.59 |
| 65 | 0.85 | 0.48 | 1.41 | 1.40 | 0.77 | 2.19 | 1.81 | 0.99 | 3.13 |
| 80 | 1.25 | 0.63 | 1.77 | 2.20 | 1.08 | 3.31 | 2.97 | 1.50 | 4.45 |
| 90 | 1.70 | 0.75 | 2.67 | 2.83 | 1.42 | 4.08 | 4.00 | 2.00 | 5.44 |
| 100 | 2.10 | 1.08 | 3.46 | 4.47 | 2.09 | 5.27 | 6.18 | 2.81 | 7.71 |
| 150 | 5.45 | 2.72 | 8.07 | 10.89 | 5.44 | 10.99 | 16.32 | 8.16 | 13.61 |
| 200 | 10.20 | 5.33 | 15.65 | 21.54 | 10.77 | 20.91 | 33.11 | 16.56 | 28.12 |
| 250 | 18.15 | 9.75 | 26.46 | 38.56 | 19.27 | 35.38 | 51.71 | 25.86 | 49.90 |
| 300 | 25.80 | 13.62 | 39.46 | 59.42 | 29.71 | 62.14 | 79.38 | 39.69 | 83.91 |
| Product range and theoretical weights (kg) | |||||||||
| DN | Schedule 10S | Schedule 40S | Schedule 80S | ||||||
| Con reducer | Ecc reducer | Reducing tee | Con reducer | Ecc reducer | Reducing tee | Con reducer | Ecc reducer | Reducing tee | |
| 40x.25 | 0.19 | 0.19 | 0.60 | 0.26 | 0.26 | 0.76 | 0.34 | 0.34 | 0.90 |
| 50×25 | 0.28 | 0.28 | 0.73 | 0.40 | 0.40 | 1.10 | 0.54 | 0.54 | 1.37 |
| 50×40 | 0.31 | 0.31 | 0.76 | 0.45 | 0.45 | 1.15 | 0.59 | 0.59 | 1.43 |
| 80x.50 | 0.55 | 0.55 | 1.56 | 1.00 | 1.00 | 2.91 | 1.79 | 1.79 | 3.91 |
| 100×50 | 0.78 | 0.78 | 2.94 | 1.50 | 1.50 | 4.48 | 1.95 | 1.95 | 6.55 |
| 100×80 | 0.87 | 0.87 | 3.04 | 1.74 | 1.74 | 4.64 | 2.33 | 2.33 | 6.79 |
| 150×80 | 1.82 | 1.82 | 6.86 | 3.95 | 3.95 | 9.68 | 5.51 | 5.51 | 11.57 |
| 150×100 | 1.96 | 1.96 | 7.10 | 4.07 | 4.07 | 11.94 | 5.96 | 5.96 | 11.97 |
| 200×100 | 3.01 | 3.01 | 13.46 | 6.55 | 6.55 | 17.98 | 9.23 | 9.23 | 24.18 |
| 200×150 | 3.19 | 3.19 | 14.08 | 6.74 | 6.74 | 18.82 | 10.12 | 10.12 | 25.31 |
Titanium Gr 5 Forged Fittings Dimensions
| Nom, Pipe Size | Sock, Bore Diameter B | Depth of Sock, Min | Wall Thickness Minimum | Bore Diameter of Fitting D | Centre to Bottom of Socket | Laying Lengths | Tolerances, ± | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3000# | 6000# | 90º Ells, Tee & Crosses | 45º Ell | Couplings | Half Couplings | ||||||||||||
| A | A | E | F | A | E | F | |||||||||||
| Sock, C | Body G | Sock C | Body G | 3000# | 6000# | 3000# | 6000# | 3000# | 6000# | ||||||||
| 1/8” | .420 .430 | 3/8 | .125 | .095 | .135 | .124 | .254 .284 | .141 | 7/16 | 7/16 | 5/16 | 5/16 | 1/4 | 5/8 | .03 | .06 | .03 |
| 1/4 | .555 .565 | 3/8 | .130 | .119 | .158 | .145 | .349 .379 | .235 | 7/16 | 17/32 | 5/16 | 5/16 | 1/4 | 5/8 | .03 | .06 | .03 |
| 3/8 | .690 .700 | 3/8 | .138 | .126 | .172 | .158 | .478 .508 | .344 | 17/32 | 5/8 | 5/16 | 7/16 | 1/4 | 11/16 | .06 | .12 | .06 |
| 1/2 | .855 .865 | 3/8 | .161 | .147 | .204 | .188 | .607 .637 | .451 | 5/8 | 3/4 | 7/16 | 1/2 | 3/8 | 7/8 | .06 | .12 | .06 |
| 3/4 | 1.065 1.075 | 1/2 | .168 | .154 | .238 | .219 | .809 .839 | .599 | 3/4 | 7/8 | 1/2 | 9/16 | 3/8 | 15/16 | .06 | .12 | .06 |
| 1 | 1.330 1.340 | 1/2 | .196 | .179 | .273 | .250 | 1.034 1.064 | .800 | 7/8 | 1-1/16 | 9/16 | 11/16 | 1/2 | 1-1/8 | .08 | .16 | .08 |
| 1-1/4 | 1.675 1.685 | 1/2 | .208 | .191 | .273 | .250 | 1.365 1.395 | 1.145 | 1-1/16 | 1-1/4 | 11/16 | 13/16 | 1/2 | 1-3/16 | .08 | .16 | .08 |
| 1-1/2 | 1.915 1.925 | 1/2 | .218 | .200 | .307 | .281 | 1.595 1.625 | 1.323 | 1-1/4 | 1-1/2 | 13/16 | 1 | 1/2 | 1-1/4 | .08 | .16 | .08 |
| 2 | 2.406 2.416 | 5/8 | .238 | .218 | .374 | .344 | 2.052 2.082 | 1.674 | 1-1/2 | 1-5/8 | 1 | 1-1/8 | 3/4 | 1-5/8 | .08 | .16 | .08 |
| 2-1/2 | 2.906 2.921 | 5/8 | .301 | .276 | .375 | 2.439 2.499 | 1-5/8 | 1-1/8 | 3/4 | 1-11/16 | .10 | .20 | .10 | ||||
| 3 | 3.535 3.550 | 5/8 | .327 | .300 | .438 | 3.038 3.098 | 2-1/4 | 1-1/4 | 3/4 | 1-3/4 | .10 | .20 | .10 | ||||
| 4 | 4.545 4.560 | 3/4 | .368 | .337 | .531 | 3.996 4.055 | 2-5/8 | 1-5/8 | 3/4 | 1-7/8 | .10 | .20 | .10 | ||||
