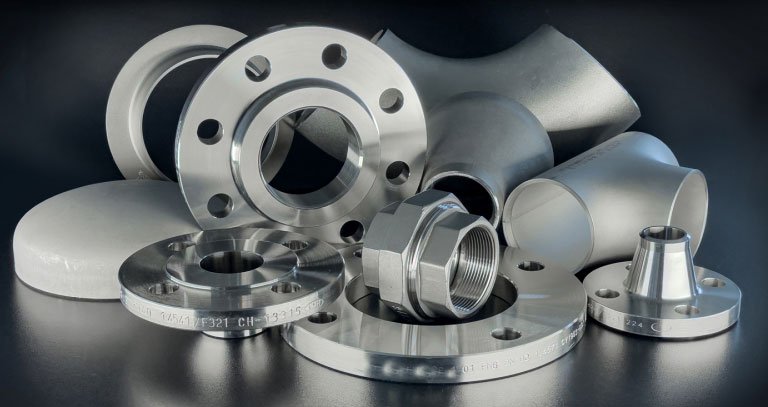

High-Quality Stainless Steel Pipe Fittings – Buttweld, Socket Weld, Threaded, Olets – ISO Approved - ANSI/ASME B16.5/B16.9/B16.11.
Stainless steel is a high-performance alloy used extensively in the manufacturing of buttweld fittings, flanges, forged fittings, and olets, owing to its superior corrosion resistance, durability, and versatility. Grades such as 304, 304L, 316, 316L, 310, 321, 347, 410, and 430, along with duplex variants like 2205 and 2507, are commonly available in a wide range of industrial fittings. These grades are produced in compliance with ASTM/ASME standards like B16.9, B16.5, B16.11, and MSS SP-97, ensuring precision and reliability for critical piping systems.
Austenitic stainless steels like 304/304L and 316/316L are preferred materials for buttweld elbows, tees, reducers, and stub ends due to their weldability and excellent resistance to general corrosion. In high-temperature and chemical processing environments, grades such as 310 and 321 are commonly used for flanges like WNRF, SORF, Blind, RTJ, and others, offering stability at elevated temperatures. These components are essential in food processing, petrochemical, and HVAC systems where both hygiene and durability are critical.
Martensitic and ferritic stainless steels such as 410, 420, and 430 are ideal for forged socket weld and threaded fittings, including elbows, tees, unions, couplings, and plugs. These grades provide high strength and moderate corrosion resistance, making them suitable for high-pressure systems. Duplex and super duplex steels are increasingly used for olets like weldolets, sockolets, and threadolets, where superior mechanical strength and resistance to chloride stress corrosion cracking are vital, especially in offshore and marine applications.
Manufactured as per ASME and DIN standards, stainless steel fittings and flanges are available in sizes from ½” to 48” and pressure classes from 150 to 2500#. Each product undergoes rigorous quality checks, including PMI, UT, and hydro testing. Whether it’s a custom-fabricated reducer or a precision-machined forged union, stainless steel grades offer flexibility for diverse industries such as oil & gas, desalination, pharmaceuticals, and power generation. With global export capability, stainless steel piping components are ready for dispatch in both standard and non-standard configurations.
Manufacturer & Stockist of Stainless Steel Grades 304, 304L, 316, 316L, 310, 321, 347, 317L, 904L, 400 Series – Buttweld Elbows, Tees, Reducers, Stub Ends – Flanges: WNRF, SORF, BLRF – Forged SW/Threaded Fittings – Outlet Fittings (Weldolet, Sockolet, Threadolet) as per MSS SP-97 – ANSI/ASME B16.5, B16.9, B16.11 – Pressure Class 150# to 2500#.
Technical Index
Industrial Stainless Steel Specifications
| Material Grade | Stainless Steel 304, 304L, 316, 316L, 310, 310S, 321, 321H, 347, 347H, 904L / 1.4301, 1.4306, 1.4307, 1.4401, 1.4404, 1.4841, 1.4845, 1.4541, 1.4878, 1.4550, 1.4961, 1.4539 / UNS S30400, S30403, S31600, S31603, S31000, S31008, S32100, S32109, S34700, S34709, N08904 |
|---|---|
| Available Product Types | Flanges, Buttweld Fittings, Forged Fittings, Olets |
| Flanges Size Range | ½” (15 NB) to 48” (1200 NB) |
| Class | 150, 300, 600, 900, 1500, 2500, PN6, PN10, PN16, PN25, PN40, PN64 |
| Standard Specifications | ASTM A182, A403 / ASME SA182, SA403 |
| Standards | ASME B16.5, B16.47 Series A & B, B16.48, EN 1092-1, DIN, BS4504, BS10, ISO 7005-1, GOST, JIS B2220, MSS SP-44, API 605 |
| Types | Weld Neck Flange (WNRF), Slip-On Flange (SORF), Socket Weld Flange (SWRF), Threaded Flange, Blind Flange (BLRF), Lap Joint Flange, Ring Type Joint Flange (RTJ), Long Weld Neck Flange, Reducing Flange, Expander Flange, Orifice Flange, Spectacle Blind Flange, Spacer Flange, Paddle Blank, Paddle Spacer, Raised Face (RF), Flat Face (FF), Large Male-Female (LMF), Small Male-Female (SMF), Tongue & Groove |
| Buttweld Fittings Size | ½” NB to 24” NB (seamless), ½” NB to 48” NB (welded) |
| Wall Thickness | SCH 10, SCH 20, SCH 40, SCH 80, SCH 160, XXS |
| Standards | ASME B16.9, MSS SP-75, EN 10253, DIN 2605/2615/2616, ISO 3419, JIS B2312 |
| Types | Elbow (90°, 45°, Long Radius, Short Radius), Tee (Equal & Reducing), Reducer (Concentric & Eccentric), Caps, Stub Ends |
| Forged Fittings Size | ½” NB to 4” NB (Socket Weld & Threaded) |
| Class | Class 2000, 3000, 6000, 9000 (psi) |
| Standards | ASME B16.11, MSS SP-83, MSS SP-95, JIS B2316 |
| Types | 90° Elbow, 45° Elbow, Tee, Cross, Full Coupling, Half Coupling, Pipe Cap, Union, Reducer Insert, Boss, Hex Head Bushing, Hex Head Plug, Square Head Plug, Round Head Plug, Bull Plug, Boss, Outlet, Hex Nipple, Swage Nipple |
| Olets (Outlet Fittings) Size | Branch Sizes ½” to 24” | Run Pipe Sizes up to 36” (custom) |
| Class | 3000#, 6000#, 9000# |
| Standards | MSS SP-97, ASME B16.11, ANSI, DIN, EN, JIS (custom) |
| Types | Weldolet, Sockolet, Threadolet, Elbolet, Latrolet, Nipolet, Sweepolet, Brazolet |
| End Connection Types | Buttweld, Socket Weld, Threaded (NPT/BSP), Flanged (RF, FF, RTJ), Custom Branch Outlets |
| Testing & Certifications | EN 10204 3.1 & 3.2, NACE MR0175, NACE MR0103, IBR, PMI, Ultrasonic Test, Radiography, Magnetic Particle Inspection |
| Surface Finish Options | Pickled, Passivated, Mirror Finish, Satin Finish, Sandblasted, Coated (Black, Yellow Transparent, Zinc) |
| Manufacturing Capabilities | CNC Machining, Cold/Hot Forming, Beveling, Drilling, Induction Heating, Forging, Custom Fabrication |
| Raw Material Sources | India, Japan, South Korea, USA, Germany, Italy |
| Export Destinations | USA, UAE, Saudi Arabia, Qatar, Kuwait, Oman, Egypt, South Africa, Kenya, Nigeria, Singapore, Malaysia, Australia |
Industrial Stainless Steel Standards
| ANSI/ASME B16.47 Flanges | ANSI/ASME B16.36 Flanges | ANSI/ASME B16.5 Flanges | Pr. EN1902-1 Flanges |
| DIN Flanges | JIS Flanges | BS 4504 Flanges | BS 10 Flanges |
| MSS SP-44 Flanges | JIS B2220 Flanges | KS B1503 Flanges | UNI Flanges |
| SABS/SANS 1123 Flanges | AS 2129, AS 4087 Flanges | ISO 9624, ISO 7005-1 Flanges | AWWA Flanges Standard |
| GOST Standard Flanges | API Flanges | AS/ANZ 4331.1 Flanges | Series A Flange |
| Series B Flange | SAE J518 Flanges | GB Flange | Norwegian Standard Flanges |
| ASME B16.11 – Forged Steel Fittings, Socket-Welding and Threaded | BS 3799 – Screwed and Socket-Welding for the Petroleum Industry | MSS SP-79 – Socket-Welding Reducer Inserts | MSS SP-83 – Class 3000 Steel Pipe Unions, Socket-Welding and Threaded |
| MSS SP-95 – Swage(d) Nipples and Bull Plugs | MSS SP-97 – Integrally Reinforced Forged Branch Outlet Fittings | DIN 2986 – Threaded Fittings | DIN 2999 – Pipe Threads for Fittings (British Standard Pipe Threads) |
| ISO 49 – Malleable Iron Fittings, Threaded | ISO 7/1 – Pipe Threads Where Pressure-tight Joints Are Made on the Threads | EN 10241 – Steel Threaded Pipe Fittings | JIS B2316 – Japanese standard for forged pipe fittings. |
| ANSI/ASME B16.9 – Factory-Made Wrought Steel Buttwelding Fittings | ANSI/ASME B16.28 – Wrought Steel Short Radius Elbows and Returns | ANSI/ASME B16.25 – Buttwelding Ends(beval standards) | MSS SP-43 – Wrought and fabricated Butt welding Fittings for Light Wall Applications |
| MSS SP-75 – High Test Wrought Butt welding Fittings | DIN 2616 – Butt welding Pipe Fittings: Reducers | DIN 2617 – Butt welding Pipe Fittings: Caps | DIN28011 – Dished Ends(used in pressure vessels) |
| EN10253-1 Butt-welding Pipe Fittings(Non Alloy Steels) | EN10253-2 Butt-welding Pipe Fittings(Stainless/Alloy Steels) |
Stainless Steel International Standards
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
|---|---|---|---|---|---|---|---|
| SS 304 | 1.4301 | S30400 | SUS 304 | 304S31 | 08Х18Н10 | Z7CN18‐09 | X5CrNi18-10 |
| SS 304L | 1.4306 / 1.4307 | S30403 | SUS 304L | 304S11 | 03Х18Н11 | Z3CN18‐10 | X2CrNi18-9 / X2CrNi19-11 |
| SS 316 | 1.4401 | S31600 | SUS 316 | 316S31 | 08Х17Н13М2 | Z7CND17‐11‐02 | X5CrNiMo17-12-2 |
| SS 316L | 1.4404 / 1.4435 | S31603 | SUS 316L | 316S11 | 03Х17Н14М2 | Z2CND17‐12 | X2CrNiMo17-12-2 |
| SS 316Ti | 1.4571 | S31635 | SUS 316Ti | 320S31 | 10Х17Н13М2Т | Z6CNDT17-12 | X6CrNiMoTi17-12-2 |
| SS 317 | 1.4449 | S31700 | SUS 317 | 317S16 | – | – | X5CrNiMo18-18 |
| SS 317L | 1.4438 | S31703 | SUS 317L | 317S11 | – | Z2CND18-14 | X2CrNiMo18-15-4 |
| SS 321 | 1.4541 | S32100 | SUS 321 | 321S31 | 08Х18Н10Т | Z6CNT18-10 | X6CrNiTi18-10 |
| SS 321H | 1.4878 | S32109 | SUS 321H | 321S51 | 12Х18Н10Т | – | X8CrNiTi18-10 |
| SS 347 | 1.4550 | S34700 | SUS 347 | 347S31 | 08Х18Н12Б | Z6CNNb18-10 | X6CrNiNb18-10 |
| SS 347H | 1.4961 | S34709 | SUS 347H | 347S51 | 12Х18Н12Б | – | X8CrNiNb18-10 |
| SS 310 | 1.4841 | S31000 | SUS 310 | 310S24 | 20Х23Н18 | Z15CN24-11 | X15CrNi25-20 |
| SS 310S | 1.4845 | S31008 | SUS 310S | 310S16 | 20Х23Н18 | Z12CN25-20 | X8CrNi25-21 |
| SS 309 | 1.4828 | S30900 | SUS 309 | 309S24 | 20Х23Н13 | Z15CN24-11 | X15CrNiSi20-12 |
| SS 309S | 1.4833 | S30908 | SUS 309S | 309S16 | 20Х23Н13 | Z12CN25-20 | X8CrNiSi25-21 |
| SS 904L | 1.4539 | N08904 | SUS 890L | 904S13 | 03Х23Н28М3ДЗ | Z2NCDU25-20 | X1NiCrMoCu25-20-5 |
| SMO 254 | 1.4547 | S31254 | – | – | – | Z1CNDU25-20 | X1CrNiMoCuN20-18-7 |
| 17-4 PH | 1.4542 | S17400 | SUS 630 | 630 | 07Х16Н4Б | Z6CNU17-04 | X5CrNiCuNb16-4 |
| 15-5 PH | 1.4545 | S15500 | – | – | – | – | X5CrNiCuNb15-5 |
| SS 410 | 1.4006 | S41000 | SUS 410 | 410S21 | 12Х13 | Z12C13 | X12Cr13 |
| SS 420 | 1.4021 | S42000 | SUS 420J1 | 420S29 | 20Х13 | Z20C13 | X20Cr13 |
| SS 430 | 1.4016 | S43000 | SUS 430 | 430S15 | 08Х17 | Z8C17 | X6Cr17 |
Stainless Steel Chemical Composition
| Grade | C (%) | Mn (%) | Si (%) | P (%) | S (%) | Cr (%) | Ni (%) | Mo (%) | Others |
|---|---|---|---|---|---|---|---|---|---|
| SS 304 | 0.08 max | 2.00 max | 1.00 max | 0.045 max | 0.030 max | 18.0 – 20.0 | 8.0 – 11.0 | – | – |
| SS 304L | 0.03 max | 2.00 max | 1.00 max | 0.045 max | 0.030 max | 18.0 – 20.0 | 8.0 – 12.0 | – | – |
| SS 316 | 0.08 max | 2.00 max | 1.00 max | 0.045 max | 0.030 max | 16.0 – 18.0 | 10.0 – 14.0 | 2.0 – 3.0 | – |
| SS 316L | 0.03 max | 2.00 max | 1.00 max | 0.045 max | 0.030 max | 16.0 – 18.0 | 10.0 – 14.0 | 2.0 – 3.0 | – |
| SS 316Ti | 0.08 max | 2.00 max | 1.00 max | 0.045 max | 0.030 max | 16.0 – 18.0 | 10.0 – 14.0 | 2.0 – 3.0 | +Ti (5x%C min) |
| SS 317 | 0.08 max | 2.00 max | 1.00 max | 0.040 max | 0.030 max | 18.0 – 20.0 | 11.0 – 15.0 | 3.0 – 4.0 | – |
| SS 317L | 0.03 max | 2.00 max | 1.00 max | 0.040 max | 0.030 max | 18.0 – 20.0 | 11.0 – 15.0 | 3.0 – 4.0 | – |
| SS 321 / 321H | 0.08 / 0.04–0.10 | 2.00 max | 1.00 max | 0.045 max | 0.030 max | 17.0 – 19.0 | 9.0 – 12.0 | – | +Ti (5x%C min) |
| SS 347 / 347H | 0.08 / 0.04–0.10 | 2.00 max | 1.00 max | 0.045 max | 0.030 max | 17.0 – 19.0 | 9.0 – 13.0 | – | +Nb (10x%C min) |
| SS 310 / 310S | 0.25 / 0.08 max | 2.00 max | 1.50 max | 0.045 max | 0.030 max | 24.0 – 26.0 | 19.0 – 22.0 | – | – |
| SS 309 / 309S | 0.20 / 0.08 max | 2.00 max | 1.00 max | 0.045 max | 0.030 max | 22.0 – 24.0 | 12.0 – 15.0 | – | – |
| SS 904L | 0.02 max | 2.00 max | 1.00 max | 0.045 max | 0.035 max | 19.0 – 23.0 | 23.0 – 28.0 | 4.0 – 5.0 | +Cu 1.0 – 2.0 |
| SMO 254 | 0.020 max | 1.00 max | 0.80 max | 0.030 max | 0.010 max | 19.5 – 20.5 | 17.5 – 18.5 | 6.0 – 6.5 | +N 0.18 – 0.22, +Cu 0.5 max |
| 17-4 PH | 0.07 max | 1.00 max | 1.00 max | 0.035 max | 0.030 max | 15.0 – 17.5 | 3.0 – 5.0 | – | +Cu 3.0 – 5.0, +Nb 0.15 – 0.45 |
| 15-5 PH | 0.07 max | 1.00 max | 1.00 max | 0.030 max | 0.030 max | 14.0 – 15.5 | 3.5 – 5.5 | – | +Cu 2.5 – 4.5, +Nb 0.15 – 0.45 |
| SS 410 | 0.15 max | 1.00 max | 1.00 max | 0.040 max | 0.030 max | 11.5 – 13.5 | – | – | – |
| SS 420 | 0.15 max | 1.00 max | 1.00 max | 0.040 max | 0.030 max | 12.0 – 14.0 | – | – | – |
| SS 430 | 0.12 max | 1.00 max | 1.00 max | 0.040 max | 0.030 max | 16.0 – 18.0 | – | – | – |
Stainless Steel Mechanical Properties
| Grade | Tensile Strength (MPa) | Yield Strength 0.2% Proof (MPa) | Elongation (% in 50mm) | Hardness (HRB) |
|---|---|---|---|---|
| SS 304 | 515 min | 205 min | 40 min | 92 max |
| SS 304L | 485 min | 170 min | 40 min | 90 max |
| SS 316 | 515 min | 205 min | 40 min | 95 max |
| SS 316L | 485 min | 170 min | 40 min | 95 max |
| SS 316Ti | 550 min | 240 min | 40 min | 95 max |
| SS 317 | 515 min | 205 min | 35 min | 95 max |
| SS 317L | 485 min | 170 min | 35 min | 95 max |
| SS 321 / 321H | 515 / 585 min | 205 / 275 min | 40 / 35 min | 95 / 99 max |
| SS 347 / 347H | 515 / 585 min | 205 / 275 min | 40 / 35 min | 95 / 99 max |
| SS 310 / 310S | 520 min | 205 min | 40 min | 95 max |
| SS 309 / 309S | 515 min | 205 min | 40 min | 95 max |
| SS 904L | 490 min | 220 min | 35 min | 90 max |
| SMO 254 | 650 min | 300 min | 35 min | 100 max |
| 17-4 PH | 930 – 1310 | 725 – 1170 | 10 – 20 | 35 – 44 HRC |
| 15-5 PH | 930 – 1310 | 725 – 1170 | 10 – 20 | 35 – 44 HRC |
| SS 410 | 480 min | 275 min | 20 min | 100 max |
| SS 420 | 700 min | 345 min | 20 min | 96 max |
| SS 430 | 450 min | 205 min | 22 min | 88 max |
Stainless Steel Types
Stainless Steel Industries & Applications
Stainless Steel Flange Size Chart
| Flange Weights by Pressure Class and Size | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Pipe Size | 150 # | 300 # | 600 # | 900 # | 1500 # | 2500 # | ||||||||||||
| WN | SO | BLD | WN | SO | BLD | WN | SO | BLD | WN | SO | BLD | WN | SO | BLD | WN | SO | BLD | |
| 1/2″ | 2 | 1 | 1 | 2 | 1 | 1 | 2 | 2 | 2 | SEE 1500 # WEIGHTS | 5 | 4 | 4 | 7 | 7 | 7 | ||
| 3/4″ | 2 | 2 | 2 | 3 | 3 | 3 | 4 | 3 | 3 | SEE 1500 # WEIGHTS | 6 | 5 | 6 | 8 | 8 | 8 | ||
| 1″ | 3 | 2 | 2 | 4 | 3 | 3 | 4 | 4 | 4 | SEE 1500 # WEIGHTS | 9 | 8 | 8 | 12 | 11 | 11 | ||
| 1 1/2″ | 4 | 3 | 3 | 7 | 6 | 6 | 8 | 7 | 8 | SEE 1500 # WEIGHTS | 13 | 12 | 13 | 25 | 22 | 23 | ||
| 2″ | 6 | 5 | 5 | 9 | 7 | 8 | 12 | 9 | 10 | SEE 1500 # WEIGHTS | 25 | 25 | 25 | 42 | 37 | 39 | ||
| 2 1/2″ | 8 | 7 | 7 | 12 | 10 | 12 | 18 | 13 | 15 | SEE 1500 # WEIGHTS | 36 | 36 | 35 | 52 | 55 | 56 | ||
| 3″ | 10 | 8 | 9 | 15 | 13 | 16 | 23 | 16 | 20 | 31 | 26 | 29 | 48 | 48 | 48 | 94 | 83 | 86 |
| 4″ | 15 | 13 | 17 | 25 | 22 | 27 | 42 | 37 | 41 | 53 | 53 | 54 | 73 | 73 | 73 | 145 | 125 | 130 |
| 5″ | 19 | 15 | 20 | 32 | 28 | 35 | 68 | 63 | 68 | 86 | 83 | 87 | 130 | 130 | 140 | 245 | 210 | 225 |
| 6″ | 24 | 19 | 26 | 42 | 39 | 50 | 81 | 80 | 86 | 110 | 110 | 115 | 165 | 165 | 160 | 380 | 325 | 345 |
| 8″ | 39 | 30 | 45 | 67 | 58 | 81 | 120 | 115 | 140 | 175 | 170 | 200 | 275 | 260 | 300 | 580 | 485 | 530 |
| 10″ | 52 | 43 | 70 | 91 | 81 | 124 | 190 | 170 | 230 | 260 | 245 | 290 | 455 | 435 | 510 | 1075 | 930 | 1025 |
| 12″ | 80 | 64 | 110 | 140 | 115 | 185 | 225 | 200 | 295 | 325 | 325 | 415 | 690 | 580 | 690 | 1525 | 1100 | 1300 |
| 14″ | 110 | 90 | 140 | 180 | 165 | 250 | 280 | 230 | 355 | 400 | 400 | 520 | 940 | NA | 975 | NA | NA | NA |
| 16″ | 140 | 98 | 180 | 250 | 190 | 295 | 390 | 330 | 495 | 495 | 425 | 600 | 1250 | NA | 1300 | NA | NA | NA |
| 18″ | 150 | 130 | 220 | 320 | 250 | 395 | 475 | 400 | 630 | 680 | 600 | 850 | 1625 | NA | 1750 | NA | NA | NA |
| 20″ | 180 | 165 | 285 | 400 | 315 | 505 | 590 | 510 | 810 | 830 | 730 | 1075 | 2050 | NA | 2225 | NA | NA | NA |
| 22″ | 225 | 185 | 355 | 465 | 370 | 640 | 720 | 590 | 1000 | NA | NA | NA | NA | NA | NA | NA | NA | NA |
| 24″ | 260 | 220 | 430 | 580 | 475 | 790 | 830 | 730 | 1250 | 1500 | 1400 | 2025 | 3325 | NA | 3625 | NA | NA | NA |
SS Buttweld Fittings Dimensions
| NOMINAL PIPE SIZE | ALL FITTINGS | ALL FITTINGS | ALL FITTINGS | ELBOWS AND TEES | 180 DEG RETURN BENDS | 180 DEG RETURN BENDS | 180 DEG RETURN BENDS | REDUCERS | CAPS |
|---|---|---|---|---|---|---|---|---|---|
| NPS | O.D. at Bevel (1), (2) | I.D. at End (1), (3), (4) |
Wall Thickness (3) | Centre-to-End Dimension A,B,C,M | Centre-to-Centre O | Back-to-Face K | Alignment of Ends U | Overall Length H | Overall Length E |
| ½ to 2½ | 0.06 -0.03 |
0.03 | Not less than 87.5% of nominal thickness | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.12 |
| 3 to 3 ½ | 0.06 | 0.06 | Not less than 87.5% of nominal thickness | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.12 |
| 4 | 0.06 | 0.06 | Not less than 87.5% of nominal thickness | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.12 |
| 5 to 8 | 0.09 -0.06 |
0.06 | Not less than 87.5% of nominal thickness | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.25 |
| 10 to 18 | 0.16 -0.12 |
0.12 | Not less than 87.5% of nominal thickness | 0.09 | 0.38 | 0.25 | 0.06 | 0.09 | 0.25 |
| 20 to 24 | 0.25 -0.19 |
0.19 | Not less than 87.5% of nominal thickness | 0.09 | 0.38 | 0.25 | 0.06 | 0.09 | 0.25 |
| 26 to 30 | 0.25 -0.19 |
0.19 | Not less than 87.5% of nominal thickness | 0.12 | … | … | … | 0.19 | 0.38 |
| 32 to 48 | 0.25 -0.19 |
0.19 | Not less than 87.5% of nominal thickness | 0.19 | … | … | … | 0.19 | 0.38 |
SS Forged Fittings Dimensions
| Size | OD | WT | SR 90 Deg Elbows Centre – Face A | Weight | LR 90 Deg Elbows Centre – Face A | Weight | SR 45 Deg Elbows Centre – Face B | Weight | ||
|---|---|---|---|---|---|---|---|---|---|---|
| mm | inch. | mm | mm | SCH | mm | kg | mm | kg | mm | kg |
| 500 | 20″ | 508 | 9.52 | STD | 508 | 93.5 | 762 | 140 | 318 | 85 |
| 12.7 | X.S | 508 | 124 | 762 | 186 | 318 | 112.5 | |||
| 450 | 18″ | 457 | 9.52 | STD | 457 | 75.6 | 686 | 113 | 286 | 56.5 |
| 12.7 | X.S | 457 | 100 | 686 | 150 | 286 | 75 | |||
| 400 | 16″ | 406.4 | 9.52 | STD | 406 | 59.5 | 610 | 89.3 | 254 | 45 |
| 12.7 | X.S | 406 | 78.7 | 610 | 118 | 254 | 59 | |||
| 350 | 14″ | 355.6 | 9.52 | STD | 356 | 45.4 | 533 | 68.1 | 222 | 34.1 |
| 12.7 | X.S | 356 | 60 | 533 | 90 | 222 | 45 | |||
| 300 | 12″ | 323.9 | 9.52 | STD | 305 | 35.4 | 457 | 53.1 | 190 | 26.6 |
| 12.7 | X.S | 305 | 46.7 | 457 | 70 | 190 | 35 | |||
| 250 | 10″ | 273.9 | 9.27 | STD | 254 | 24.1 | 381 | 36.1 | 159 | 18.1 |
| 12.7 | X.S | 254 | 32.5 | 381 | 48.8 | 159 | 24.4 | |||
| 200 | 8″ | 219.1 | 8.18 | STD | 203 | 13.6 | 305 | 20.4 | 127 | 10.2 |
| 12.7 | X.S | 203 | 20.9 | 305 | 30.9 | 127 | 15.5 | |||
| 150 | 6″ | 168.3 | 7.11 | STD | 152.4 | 6.8 | 229 | 10.1 | 95.2 | 5.1 |
| 10.97 | X.S | 152.4 | 10.2 | 229 | 15.3 | 95.2 | 7.7 | |||
| 125 | 5″ | 141.3 | 6.65 | STD | 127 | 4.8 | 190 | 6.8 | 79.4 | 3.4 |
| 9.5 | X.S | 127 | 6.5 | 190 | 10 | 79.4 | 5 | |||
| 100 | 4″ | 114.3 | 62 | STD | 101.6 | 2.8 | 152.4 | 4.2 | 63.5 | 2.1 |
| 8.56 | X.S | 101.6 | 3.9 | 152.4 | 5.7 | 63.5 | 2.9 | |||
| 80 | 3″ | 88.9 | 5.49 | STD | 76.2 | 1.45 | 114.3 | 2.18 | 50.8 | 1.1 |
| 7.62 | X.S | 76.2 | 1.95 | 114.3 | 2.86 | 50.8 | 1.45 | |||
| 65 | 21/2″ | 73 | 5.16 | STD | 63.5 | 0.95 | 95.2 | 1.46 | 44.4 | 0.73 |
| 71 | X.S | 63.5 | 1.27 | 95.2 | 1.82 | 44.4 | 0.91 | |||
| 50 | 2″ | 60.3 | 3.91 | STD | 50.8 | 0.5 | 76.2 | 0.72 | 34.9 | 0.36 |
| 5.54 | X.S | 50.8 | 0.68 | 76.2 | 1 | 34.9 | 0.5 | |||
| 40 | 11/2″ | 48.3 | 3.68 | STD | 38.1 | 0.26 | 57.1 | 0.4 | 28.6 | 0.2 |
| 58 | X.S | 38.1 | 0.35 | 57.1 | 0.5 | 28.6 | 0.25 | |||
| 32 | 11/4″ | 42.2 | 3.56 | STD | 31.75 | 0.18 | 47.6 | 0.28 | 25.4 | 0.14 |
| 4.85 | X.S | 31.75 | 0.24 | 47.6 | 0.39 | 25.4 | 0.2 | |||
| 25 | 1″ | 33.4 | 3.38 | STD | 25.4 | 0.11 | 38.1 | 0.15 | 22.2 | 09 |
| 4.55 | X.S | 25.4 | 0.14 | 38.1 | 0.19 | 22.2 | 0.11 | |||
| 20 | 3/4″ | 26.7 | 2.87 | STD | – | – | 28.6 | 08 | 11.1 | 04 |
| 3.91 | X.S | – | – | 28.6 | 0.11 | 11.1 | 05 | |||
| 15 | 1/2″ | 21.3 | 2.78 | STD | – | – | 38.1 | 08 | 15.9 | 04 |
| 3.73 | X.S | – | – | 38.1 | 0.10 | 15.9 | 05 | |||
Major Industrial Stainless Steel Fittings & Flanges Export Countries
United Arab Emirates (UAE), Jordan, Bahrain, Kuwait, Oman, Qatar, Saudi Arabia, United States of America (USA), Singapore, Malaysia, Azerbaijan, Armenia, Georgia, Egypt, Algeria, Nigeria, South Africa, Kenya, Morocco, Ethiopia, Ghana, Tanzania, Sudan, Uganda, Angola.
