Incoloy 800, 800H, 800HT Pipe Fittings & Flanges – Complete Range of Buttweld, Forged, and Olet Types. ISO 9001:2015 Certified | Worldwide Delivery.
As a trusted supplier of high-performance alloys, we provide engineered metal solutions tailored for use in high-temperature, high-stress, and corrosive environments. Incoloy 800 is a nickel-iron-chromium alloy designed for excellent strength and corrosion resistance, particularly at elevated temperatures. It offers stability against oxidation, carburization, and high-temperature scaling, making it ideal for use in petrochemical plants, heat exchangers, furnace components, and power generation systems.

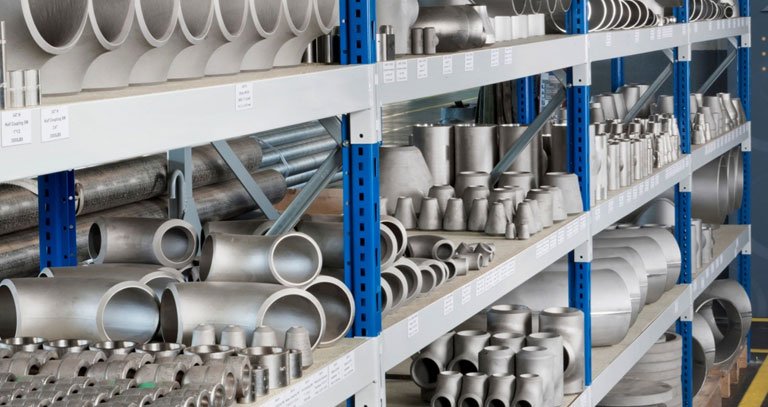

We offer a wide variety of Incoloy 800HT products, including flanges (weld neck, slip-on, socket weld, blind, threaded, lap joint), buttweld pipe fittings (elbows, reducers, tees, caps), and forged fittings (socket weld/threaded elbows, couplings, unions, tees). Additionally, we supply olets such as weldolets, sockolets, and threadolets, suitable for high-temperature branch piping applications. All products conform to international standards including ASTM B564, B366 and are manufactured to meet ASME/ANSI B16.5, B16.9, and B16.11 specifications for dimensional and pressure integrity.
Incoloy 800 offers a tensile strength of approximately 520 MPa, excellent resistance to oxidation up to 1100°C (2000°F), and good structural stability at prolonged high-temperature exposure. The material maintains its mechanical properties in environments containing sulfur compounds, nitriding, and other process gases. We supply components in sizes ranging from ½” NB to 48” NB, with pressure ratings from 150# to 2500# for flanges and up to 9000# for forged fittings. Each item is manufactured under a strict ISO 9001:2015 certified quality system, with testing methods including PMI, hydrotesting, ultrasonic, hardness, and dimensional inspections.
Incoloy 800H is widely used in thermal processing equipment, hydrocarbon cracking units, steam superheaters, heat exchanger tubing, and high-temperature piping systems. Its advantages include high creep and rupture strength, excellent resistance to oxidation and carburization, and stability in acidic and high-temperature environments. The alloy’s long service life and minimal maintenance needs make it an optimal choice for industries such as petrochemicals, refineries, power plants, and nuclear applications where reliability and durability are essential.
Incoloy 800/800H/800HT Industrial Fittings – Including WNRF, SORF, BLRF Flanges, Buttweld Elbows, Tees, Reducers, Forged SW & Threaded Fittings, Weldolets & Threadolets – Built to ASME B16.5, B16.9, B16.11, MSS SP-97 Standards.
Technical Index
Industrial Incoloy 800/800H/800HT Specifications
| Material Grade | Incoloy 800, 800H, 800HT / UNS N08800, N08810, N08811 / W.Nr. 1.4876, 1.4958, 1.4859 |
|---|---|
| Available Product Types | Flanges, Buttweld Fittings, Forged Fittings, Olets |
| Flanges Size Range | ½” (15 NB) to 24” (600 NB) |
| Class | 150, 300, 600, 900, 1500, 2500, PN6 to PN64 |
| Standard Specifications | ASTM B564, B366 / ASME SB564, SB366 |
| Standards | ASME B16.5, B16.47 Series A & B, B16.48, EN 1092-1, DIN, ISO 7005-1, MSS SP-44, API 605 |
| Types | Weld Neck, Slip-On, Socket Weld, Threaded, Blind, Lap Joint, RTJ, Long Weld Neck, Reducing, Expander, Orifice, Spectacle Blind, Spacer, Paddle Blank, RF, FF |
| Buttweld Fittings Size | ½” NB to 12” NB (seamless), ½” NB to 24” NB (welded) |
| Wall Thickness | SCH 10 to XXS |
| Standards | ASME B16.9, MSS SP-75, EN 10253, DIN 2605/2615/2616 |
| Types | Elbow (90°, 45°, LR, SR), Tee (Equal, Reducing), Reducer (Concentric, Eccentric), End Cap, Stub Ends |
| Forged Fittings Size | ½” NB to 4” NB (Socket Weld & Threaded) |
| Class | 2000, 3000, 6000, 9000 (psi) |
| Standards | ASME B16.11, MSS SP-83, MSS SP-95 |
| Types | 90°/45° Elbow, Tee, Cross, Couplings, Unions, Caps, Hex Bushings, Plugs, Bosses, Nipples, Swages |
| Olets (Outlet Fittings) Size | ½” to 24” Branch | Run Pipe up to 36” |
| Class | 3000#, 6000#, 9000# |
| Standards | MSS SP-97, ASME B16.11, ANSI, DIN, JIS (Custom) |
| Types | Weldolet, Sockolet, Threadolet, Elbolet, Latrolet, Nipolet, Sweepolet, Brazolet |
| End Connection Types | Buttweld, Socket Weld, Threaded (NPT/BSP), Flanged (RF, FF, RTJ) |
| Testing & Certifications | EN 10204 3.1/3.2, NACE MR0175, PMI, Ultrasonic, Radiography, MPI |
| Surface Finish Options | Pickled, Passivated, Bright Annealed, Coated (Zinc, Black) |
| Manufacturing Capabilities | Hot/Cold Forming, CNC Machining, Forging, Induction Bending, Fabrication |
| Raw Material Sources | USA, Germany, Japan, South Korea |
| Export Destinations | USA, UAE, Saudi Arabia, Qatar, Europe, South Africa, Singapore, Malaysia |
Industrial Incoloy 800 Standards
| ANSI/ASME B16.47 Flanges | ANSI/ASME B16.36 Flanges | ANSI/ASME B16.5 Flanges | Pr. EN1902-1 Flanges |
| DIN Flanges | JIS Flanges | BS 4504 Flanges | BS 10 Flanges |
| MSS SP-44 Flanges | JIS B2220 Flanges | KS B1503 Flanges | UNI Flanges |
| SABS/SANS 1123 Flanges | AS 2129, AS 4087 Flanges | ISO 9624, ISO 7005-1 Flanges | AWWA Flanges Standard |
| GOST Standard Flanges | API Flanges | AS/ANZ 4331.1 Flanges | Series A Flange |
| Series B Flange | SAE J518 Flanges | GB Flange | Norwegian Standard Flanges |
| ASME B16.11 – Forged Steel Fittings, Socket-Welding and Threaded | BS 3799 – Screwed and Socket-Welding for the Petroleum Industry | MSS SP-79 – Socket-Welding Reducer Inserts | MSS SP-83 – Class 3000 Steel Pipe Unions, Socket-Welding and Threaded |
| MSS SP-95 – Swage(d) Nipples and Bull Plugs | MSS SP-97 – Integrally Reinforced Forged Branch Outlet Fittings | DIN 2986 – Threaded Fittings | DIN 2999 – Pipe Threads for Fittings (British Standard Pipe Threads) |
| ISO 49 – Malleable Iron Fittings, Threaded | ISO 7/1 – Pipe Threads Where Pressure-tight Joints Are Made on the Threads | EN 10241 – Steel Threaded Pipe Fittings | JIS B2316 – Japanese standard for forged pipe fittings. |
| ANSI/ASME B16.9 – Factory-Made Wrought Steel Buttwelding Fittings | ANSI/ASME B16.28 – Wrought Steel Short Radius Elbows and Returns | ANSI/ASME B16.25 – Buttwelding Ends(beval standards) | MSS SP-43 – Wrought and fabricated Butt welding Fittings for Light Wall Applications |
| MSS SP-75 – High Test Wrought Butt welding Fittings | DIN 2616 – Butt welding Pipe Fittings: Reducers | DIN 2617 – Butt welding Pipe Fittings: Caps | DIN28011 – Dished Ends(used in pressure vessels) |
| EN10253-1 Butt-welding Pipe Fittings | EN10253-2 Butt-welding Pipe Fittings |
Incoloy 800 International Standards
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN | OR |
|---|---|---|---|---|---|---|---|---|
| Incoloy 800 | 1.4876 | N08800 | NCF 800 | NA 15 | ЭИ670 | Z8NC32-21 | X10NiCrAlTi32-20 | XH32T |
| Incoloy 800H | 1.4958 / 1.4876 | N08810 | NCF 800H | NA 15(H) | ЭИ670 | Z8NC33-21 | X5NiCrAlTi31-20 | XH32T |
| Incoloy 800HT | 1.4859 / 1.4876 | N08811 | NCF 800HT | NA 15(HT) | ЭИ670 | – | X8NiCrAlTi32-21 | XH32T |
Incoloy 800HT Chemical Composition
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr | Al | Ti |
|---|---|---|---|---|---|---|---|---|---|---|
| 800 | 0.10 max | 1.50 max | 1.00 max | 0.015 max | 0.75 max | 39.50 min | 30.00 – 35.00 | 19.00 – 23.00 | 0.15 – 0.60 | 0.15 – 0.60 |
| 800H | 0.05 – 0.10 | 1.50 max | 1.00 max | 0.015 max | 0.75 max | 39.50 min | 30.00 – 35.00 | 19.00 – 23.00 | 0.15 – 0.60 | 0.15 – 0.60 |
| 800HT | 0.06 – 0.10 | 1.50 max | 1.00 max | 0.015 max | 0.75 max | 39.50 min | 30.00 – 35.00 | 19.00 – 23.00 | 0.15 – 0.60ᴬ | 0.15 – 0.60ᴬ |
Incoloy 800 Mechanical Properties
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
|---|---|---|---|---|---|
| 800 / 800H / 800HT | 7.94 g/cm3 | 1385 °C (2525 °F) | Psi – 75,000 , MPa – 520 | Psi – 30,000 , MPa – 205 | 30 % |
Incoloy 800/800H/800HT Types
Incoloy 800H Industries & Applications
Incoloy 800H Flange Size Chart
| Pipe Normal Diam. | O.D. Flange | Thk. Of Flange Min | Diam. of Hub |
Diameter of Raised Face | Length Hub.Y | Thread Length | Diam. of Bolt Circle |
Diam. of Bolt Holes |
Number of Bolts |
Diam. of Bolts (inch) |
KG | LB | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| inch | dn | O | C | X | G | Y | T | BC | BH | BN | BD | ||
| 1/2″ | 15 | 89.00 | 11.20 | 30.20 | 35.10 | 15.70 | 15.70 | 60.50 | 15.80 | 4 | 1/2″ | 0.4 | 0.9 |
| 3/4″ | 20 | 98.50 | 12.70 | 38.10 | 42.90 | 15.70 | 15.70 | 69.90 | 15.80 | 4 | 1/2″ | 0.7 | 1.5 |
| 1″ | 25 | 108.00 | 14.20 | 49.30 | 50.80 | 17.50 | 17.50 | 79.30 | 15.80 | 4 | 1/2″ | 0.8 | 1.8 |
| 1-1/4″ | 32 | 117.50 | 15.70 | 58.70 | 63.50 | 20.60 | 20.60 | 88.90 | 15.80 | 4 | 1/2″ | 1.2 | 2.6 |
| 1-1/2″ | 40 | 127.00 | 17.50 | 65.00 | 73.20 | 22.40 | 22.40 | 98.60 | 15.80 | 4 | 1/2″ | 1.5 | 3.3 |
| 2″ | 50 | 152.50 | 19.10 | 77.70 | 91.90 | 25.40 | 25.40 | 120.70 | 19.10 | 4 | 5/8″ | 2.3 | 5.1 |
| 2-1/2″ | 65 | 178.00 | 22.40 | 90.40 | 104.60 | 28.40 | 28.40 | 139.70 | 19.10 | 4 | 5/8″ | 3.7 | 8.1 |
| 3″ | 80 | 190.50 | 23.90 | 108.00 | 127.00 | 30.20 | 30.20 | 152.40 | 19.10 | 4 | 5/8″ | 4.1 | 9 |
| 3-1/2″ | 90 | 216.00 | 23.90 | 122.20 | 139.70 | 31.80 | 31.80 | 177.80 | 19.10 | 8 | 5/8″ | 5.1 | 11.2 |
| 4″ | 100 | 228.50 | 23.90 | 134.90 | 157.20 | 33.30 | 33.30 | 190.50 | 19.10 | 8 | 5/8″ | 5.9 | 13 |
| 5″ | 125 | 254.00 | 23.90 | 163.60 | 185.70 | 36.60 | 36.60 | 215.90 | 22.40 | 8 | 3/4″ | 7 | 15.4 |
| 6″ | 150 | 279.50 | 25.40 | 192.00 | 215.90 | 39.60 | 39.60 | 241.30 | 22.40 | 8 | 3/4″ | 8.4 | 18.5 |
| 8″ | 200 | 343.00 | 28.40 | 246.10 | 269.70 | 44.50 | 44.50 | 298.50 | 22.40 | 8 | 3/4″ | 13 | 28.6 |
| 10″ | 250 | 406.50 | 30.20 | 304.80 | 323.90 | 49.30 | 49.30 | 362.00 | 25.40 | 12 | 7/8″ | 18 | 39.5 |
| 12″ | 300 | 482.50 | 31.80 | 365.30 | 381.00 | 55.60 | 55.60 | 431.80 | 25.40 | 12 | 7/8″ | 29 | 64 |
| 14″ | 350 | 533.50 | 35.10 | 400.10 | 412.80 | 57.20 | 57.20 | 476.30 | 28.50 | 12 | 1″ | 39 | 86 |
| 16″ | 400 | 597.00 | 36.60 | 457.20 | 469.90 | 63.50 | 63.50 | 539.80 | 28.50 | 16 | 1″ | 47 | 103 |
| 18″ | 450 | 635.00 | 39.60 | 505.00 | 533.40 | 68.30 | 68.30 | 577.90 | 31.80 | 16 | 1 1/8″ | 57 | 126 |
| 20″ | 500 | 698.50 | 42.90 | 558.80 | 584.20 | 73.20 | 73.20 | 635.00 | 31.80 | 20 | 1 1/8″ | 76 | 167 |
| 24″ | 600 | 813.00 | 47.80 | 663.40 | 692.20 | 82.60 | 82.60 | 749.30 | 35.10 | 20 | 1 1/4″ | 97 | 214 |
Incoloy 800H Buttweld Fittings Dimensions
| Product range and theoretical weights (kg) | |||||||||
| DN | Schedule 10S | Schedule 40S | Schedule 80S | ||||||
| 90° Elbow | 45° Elbow | Equal tee | 90° Elbow | 45° Elbow | Equal tee | 90° Elbow | 45° Elbow | Equal tee | |
| 8 | 0.02 | 0.01 | 0.03 | 0.03 | 0.02 | 0.06 | 0.04 | 0.03 | 0.07 |
| 10 | 0.03 | 0.02 | 0.05 | 0.03 | 0.02 | 0.03 | 0.06 | 0.04 | 0.09 |
| 15 | 0.06 | 0.03 | 0.09 | 0.08 | 0.04 | 0.10 | 0.10 | 0.05 | 0.14 |
| 20 | 0.07 | 0.03 | 0.13 | 0.08 | 0.04 | 0.17 | 0.11 | 0.05 | 0.20 |
| 25 | 0.14 | 0.08 | 0.28 | 0.15 | 0.11 | 0.29 | 0.22 | 0.14 | 0.38 |
| 32 | 0.23 | 0.11 | 0.49 | 0.26 | 0.17 | 0.59 | 0.40 | 0.23 | 0.68 |
| 40 | 0.30 | 0.17 | 0.68 | 0.40 | 0.23 | 0.86 | 0.51 | 0.29 | 1.02 |
| 50 | 0.50 | 0.25 | 0.85 | 0.70 | 0.4 | 1.28 | 0.91 | 0.59 | 1.59 |
| 65 | 0.85 | 0.48 | 1.41 | 1.40 | 0.77 | 2.19 | 1.81 | 0.99 | 3.13 |
| 80 | 1.25 | 0.63 | 1.77 | 2.20 | 1.08 | 3.31 | 2.97 | 1.50 | 4.45 |
| 90 | 1.70 | 0.75 | 2.67 | 2.83 | 1.42 | 4.08 | 4.00 | 2.00 | 5.44 |
| 100 | 2.10 | 1.08 | 3.46 | 4.47 | 2.09 | 5.27 | 6.18 | 2.81 | 7.71 |
| 150 | 5.45 | 2.72 | 8.07 | 10.89 | 5.44 | 10.99 | 16.32 | 8.16 | 13.61 |
| 200 | 10.20 | 5.33 | 15.65 | 21.54 | 10.77 | 20.91 | 33.11 | 16.56 | 28.12 |
| 250 | 18.15 | 9.75 | 26.46 | 38.56 | 19.27 | 35.38 | 51.71 | 25.86 | 49.90 |
| 300 | 25.80 | 13.62 | 39.46 | 59.42 | 29.71 | 62.14 | 79.38 | 39.69 | 83.91 |
| Product range and theoretical weights (kg) | |||||||||
| DN | Schedule 10S | Schedule 40S | Schedule 80S | ||||||
| Con reducer | Ecc reducer | Reducing tee | Con reducer | Ecc reducer | Reducing tee | Con reducer | Ecc reducer | Reducing tee | |
| 40x.25 | 0.19 | 0.19 | 0.60 | 0.26 | 0.26 | 0.76 | 0.34 | 0.34 | 0.90 |
| 50×25 | 0.28 | 0.28 | 0.73 | 0.40 | 0.40 | 1.10 | 0.54 | 0.54 | 1.37 |
| 50×40 | 0.31 | 0.31 | 0.76 | 0.45 | 0.45 | 1.15 | 0.59 | 0.59 | 1.43 |
| 80x.50 | 0.55 | 0.55 | 1.56 | 1.00 | 1.00 | 2.91 | 1.79 | 1.79 | 3.91 |
| 100×50 | 0.78 | 0.78 | 2.94 | 1.50 | 1.50 | 4.48 | 1.95 | 1.95 | 6.55 |
| 100×80 | 0.87 | 0.87 | 3.04 | 1.74 | 1.74 | 4.64 | 2.33 | 2.33 | 6.79 |
| 150×80 | 1.82 | 1.82 | 6.86 | 3.95 | 3.95 | 9.68 | 5.51 | 5.51 | 11.57 |
| 150×100 | 1.96 | 1.96 | 7.10 | 4.07 | 4.07 | 11.94 | 5.96 | 5.96 | 11.97 |
| 200×100 | 3.01 | 3.01 | 13.46 | 6.55 | 6.55 | 17.98 | 9.23 | 9.23 | 24.18 |
| 200×150 | 3.19 | 3.19 | 14.08 | 6.74 | 6.74 | 18.82 | 10.12 | 10.12 | 25.31 |
Incoloy 800HT Forged Fittings Dimensions
| Size | OD | WT | SR 90 Deg Elbows Centre – Face A | Weight | LR 90 Deg Elbows Centre – Face A | Weight | SR 45 Deg Elbows Centre – Face B | Weight | ||
|---|---|---|---|---|---|---|---|---|---|---|
| mm | inch. | mm | mm | SCH | mm | kg | mm | kg | mm | kg |
| 500 | 20″ | 508 | 9.52 | STD | 508 | 93.5 | 762 | 140 | 318 | 85 |
| 12.7 | X.S | 508 | 124 | 762 | 186 | 318 | 112.5 | |||
| 450 | 18″ | 457 | 9.52 | STD | 457 | 75.6 | 686 | 113 | 286 | 56.5 |
| 12.7 | X.S | 457 | 100 | 686 | 150 | 286 | 75 | |||
| 400 | 16″ | 406.4 | 9.52 | STD | 406 | 59.5 | 610 | 89.3 | 254 | 45 |
| 12.7 | X.S | 406 | 78.7 | 610 | 118 | 254 | 59 | |||
| 350 | 14″ | 355.6 | 9.52 | STD | 356 | 45.4 | 533 | 68.1 | 222 | 34.1 |
| 12.7 | X.S | 356 | 60 | 533 | 90 | 222 | 45 | |||
| 300 | 12″ | 323.9 | 9.52 | STD | 305 | 35.4 | 457 | 53.1 | 190 | 26.6 |
| 12.7 | X.S | 305 | 46.7 | 457 | 70 | 190 | 35 | |||
| 250 | 10″ | 273.9 | 9.27 | STD | 254 | 24.1 | 381 | 36.1 | 159 | 18.1 |
| 12.7 | X.S | 254 | 32.5 | 381 | 48.8 | 159 | 24.4 | |||
| 200 | 8″ | 219.1 | 8.18 | STD | 203 | 13.6 | 305 | 20.4 | 127 | 10.2 |
| 12.7 | X.S | 203 | 20.9 | 305 | 30.9 | 127 | 15.5 | |||
| 150 | 6″ | 168.3 | 7.11 | STD | 152.4 | 6.8 | 229 | 10.1 | 95.2 | 5.1 |
| 10.97 | X.S | 152.4 | 10.2 | 229 | 15.3 | 95.2 | 7.7 | |||
| 125 | 5″ | 141.3 | 6.65 | STD | 127 | 4.8 | 190 | 6.8 | 79.4 | 3.4 |
| 9.5 | X.S | 127 | 6.5 | 190 | 10 | 79.4 | 5 | |||
| 100 | 4″ | 114.3 | 62 | STD | 101.6 | 2.8 | 152.4 | 4.2 | 63.5 | 2.1 |
| 8.56 | X.S | 101.6 | 3.9 | 152.4 | 5.7 | 63.5 | 2.9 | |||
| 80 | 3″ | 88.9 | 5.49 | STD | 76.2 | 1.45 | 114.3 | 2.18 | 50.8 | 1.1 |
| 7.62 | X.S | 76.2 | 1.95 | 114.3 | 2.86 | 50.8 | 1.45 | |||
| 65 | 21/2″ | 73 | 5.16 | STD | 63.5 | 0.95 | 95.2 | 1.46 | 44.4 | 0.73 |
| 71 | X.S | 63.5 | 1.27 | 95.2 | 1.82 | 44.4 | 0.91 | |||
| 50 | 2″ | 60.3 | 3.91 | STD | 50.8 | 0.5 | 76.2 | 0.72 | 34.9 | 0.36 |
| 5.54 | X.S | 50.8 | 0.68 | 76.2 | 1 | 34.9 | 0.5 | |||
| 40 | 11/2″ | 48.3 | 3.68 | STD | 38.1 | 0.26 | 57.1 | 0.4 | 28.6 | 0.2 |
| 58 | X.S | 38.1 | 0.35 | 57.1 | 0.5 | 28.6 | 0.25 | |||
| 32 | 11/4″ | 42.2 | 3.56 | STD | 31.75 | 0.18 | 47.6 | 0.28 | 25.4 | 0.14 |
| 4.85 | X.S | 31.75 | 0.24 | 47.6 | 0.39 | 25.4 | 0.2 | |||
| 25 | 1″ | 33.4 | 3.38 | STD | 25.4 | 0.11 | 38.1 | 0.15 | 22.2 | 09 |
| 4.55 | X.S | 25.4 | 0.14 | 38.1 | 0.19 | 22.2 | 0.11 | |||
| 20 | 3/4″ | 26.7 | 2.87 | STD | – | – | 28.6 | 08 | 11.1 | 04 |
| 3.91 | X.S | – | – | 28.6 | 0.11 | 11.1 | 05 | |||
| 15 | 1/2″ | 21.3 | 2.78 | STD | – | – | 38.1 | 08 | 15.9 | 04 |
| 3.73 | X.S | – | – | 38.1 | 0.10 | 15.9 | 05 | |||
