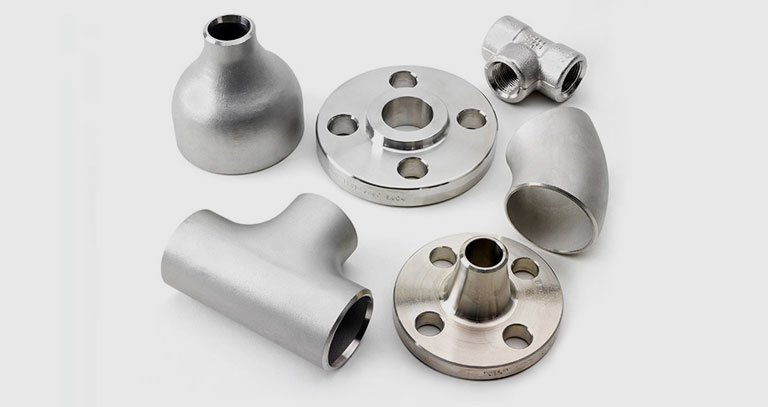

Premium Haynes 188 & 230 Fittings – High-Temp Flanges, Forged & Outlet Fittings – MSS SP-97, ASME B16.5/B16.11 Standards
Haynes 188 and Haynes 230 are high-performance cobalt- and nickel-based superalloys engineered for extreme heat and oxidative environments. These alloys are widely used in aerospace, gas turbines, and heat exchanger applications due to their excellent resistance to high-temperature oxidation, thermal fatigue, and carburization. We supply a comprehensive range of industrial components in these materials, including buttweld fittings, forged flanges, and branch outlet fittings, precision-engineered for superior service in demanding thermal conditions.
We offer Haynes 188 and Haynes 230 components in standard configurations like elbows, tees, reducers, caps, stub ends, socket weld & threaded fittings, and flanges such as WNRF, SORF, blind, and RTJ. Our branch outlet range includes Weldolets, Sockolets, and Threadolets. All products conform to international manufacturing standards like ASME B16.5, B16.9, B16.11, and MSS SP-97, ensuring seamless integration with global piping systems. Pressure classes supported range from 150# to 2500#, with sizes from ½” to 24” NB and wall thicknesses from SCH 10 to XXS.
Haynes 188 offers exceptional resistance to oxidizing environments up to 1095°C (2000°F), along with good fabricability and weldability. Haynes 230, on the other hand, is known for its outstanding strength and stability at temperatures exceeding 1149°C (2100°F), along with superior oxidation resistance. These properties make both alloys ideal for use in combustion liners, afterburners, transition ducts, industrial furnaces, and reformer components in refineries and power plants.
Our Haynes 188 and Haynes 230 products are manufactured under strict quality control protocols and are ISO 9001:2015 certified. We provide complete traceability and documentation, including EN 10204 3.1/3.2 MTC, NACE MR0175 compliance, ultrasonic testing, PMI, and hydrostatic reports. With ready stock, custom fabrication services, and a global distribution network, we ensure prompt delivery to critical industries across the USA, Europe, Middle East, Southeast Asia, and Africa.
Precision Engineered Haynes 188 & 230 Fittings – Buttweld Elbows, WNRF/SORF/Blind Flanges, SW & Threaded Fittings, Olets – ASME B16.9/B16.11, MSS SP-97 – Global Delivery
Technical Index
Industrial Haynes 188 Specifications
| Material Grade | Haynes 188 / UNS R30188 & Haynes 230 / UNS N06230 |
|---|---|
| Available Product Types | Flanges, Buttweld Fittings, Forged Fittings, Olets |
| Flanges Size Range | ½” (15 NB) to 24” (600 NB) |
| Class | 150, 300, 600, 900, 1500, 2500, PN6 to PN64 |
| Standard Specifications | ASTM B622, B564, B366 / ASME SB622, SB564, SB366 |
| Standards | ASME B16.5, B16.47 Series A & B, B16.48, EN 1092-1, DIN, ISO 7005-1, MSS SP-44, API 605 |
| Types | Weld Neck, Slip-On, Socket Weld, Threaded, Blind, Lap Joint, RTJ, Long Weld Neck, Reducing, Expander, Orifice, Spectacle Blind, Spacer, Paddle Blank, RF, FF |
| Buttweld Fittings Size | ½” NB to 12” NB (seamless), ½” NB to 24” NB (welded) |
| Wall Thickness | SCH 10 to XXS |
| Standards | ASME B16.9, MSS SP-75, EN 10253, DIN 2605/2615/2616 |
| Types | Elbow (90°, 45°, LR, SR), Tee (Equal, Reducing), Reducer (Concentric, Eccentric), End Cap, Stub Ends |
| Forged Fittings Size | ½” NB to 4” NB (Socket Weld & Threaded) |
| Class | 2000, 3000, 6000, 9000 (psi) |
| Standards | ASME B16.11, MSS SP-83, MSS SP-95 |
| Types | 90°/45° Elbow, Tee, Cross, Couplings, Unions, Caps, Hex Bushings, Plugs, Bosses, Nipples, Swages |
| Olets (Outlet Fittings) Size | ½” to 24” Branch | Run Pipe up to 36” |
| Class | 3000#, 6000#, 9000# |
| Standards | MSS SP-97, ASME B16.11, ANSI, DIN, JIS (Custom) |
| Types | Weldolet, Sockolet, Threadolet, Elbolet, Latrolet, Nipolet, Sweepolet, Brazolet |
| End Connection Types | Buttweld, Socket Weld, Threaded (NPT/BSP), Flanged (RF, FF, RTJ) |
| Testing & Certifications | EN 10204 3.1/3.2, NACE MR0175, PMI, Ultrasonic, Radiography, MPI |
| Surface Finish Options | Pickled, Passivated, Bright Annealed, Coated (Zinc, Black) |
| Manufacturing Capabilities | Hot/Cold Forming, CNC Machining, Forging, Induction Bending, Fabrication |
| Raw Material Sources | USA, Germany, Japan, South Korea |
| Export Destinations | USA, UAE, Saudi Arabia, Qatar, Europe, South Africa, Singapore, Malaysia |
Industrial Haynes 230 Standards
| ANSI/ASME B16.47 Flanges | ANSI/ASME B16.36 Flanges | ANSI/ASME B16.5 Flanges | Pr. EN1902-1 Flanges |
| DIN Flanges | JIS Flanges | BS 4504 Flanges | BS 10 Flanges |
| MSS SP-44 Flanges | JIS B2220 Flanges | KS B1503 Flanges | UNI Flanges |
| SABS/SANS 1123 Flanges | AS 2129, AS 4087 Flanges | ISO 9624, ISO 7005-1 Flanges | AWWA Flanges Standard |
| GOST Standard Flanges | API Flanges | AS/ANZ 4331.1 Flanges | Series A Flange |
| Series B Flange | SAE J518 Flanges | GB Flange | Norwegian Standard Flanges |
| ASME B16.11 – Forged Steel Fittings, Socket-Welding and Threaded | BS 3799 – Screwed and Socket-Welding for the Petroleum Industry | MSS SP-79 – Socket-Welding Reducer Inserts | MSS SP-83 – Class 3000 Steel Pipe Unions, Socket-Welding and Threaded |
| MSS SP-95 – Swage(d) Nipples and Bull Plugs | MSS SP-97 – Integrally Reinforced Forged Branch Outlet Fittings | DIN 2986 – Threaded Fittings | DIN 2999 – Pipe Threads for Fittings (British Standard Pipe Threads) |
| ISO 49 – Malleable Iron Fittings, Threaded | ISO 7/1 – Pipe Threads Where Pressure-tight Joints Are Made on the Threads | EN 10241 – Steel Threaded Pipe Fittings | JIS B2316 – Japanese standard for forged pipe fittings. |
| ANSI/ASME B16.9 – Factory-Made Wrought Steel Buttwelding Fittings | ANSI/ASME B16.28 – Wrought Steel Short Radius Elbows and Returns | ANSI/ASME B16.25 – Buttwelding Ends(beval standards) | MSS SP-43 – Wrought and fabricated Butt welding Fittings for Light Wall Applications |
| MSS SP-75 – High Test Wrought Butt welding Fittings | DIN 2616 – Butt welding Pipe Fittings: Reducers | DIN 2617 – Butt welding Pipe Fittings: Caps | DIN28011 – Dished Ends(used in pressure vessels) |
| EN10253-1 Butt-welding Pipe Fittings | EN10253-2 Butt-welding Pipe Fittings |
Haynes 188 & 230 International Standards
| Grade | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
|---|---|---|---|---|---|---|---|
| Haynes 188 | 2.4683 | R30188 | — | — | — | — | — |
| Haynes 230 | 2.4733 | N06230 | — | — | — | — | NiCrWMo |
Haynes 188 & 230 Chemical Composition
| Grade | Co% | Cr% | Ni% | W% | Fe% | Mn% | Si% | La% | C% |
|---|---|---|---|---|---|---|---|---|---|
| Haynes 188 | Balance | 22.0 | 22.0 | 14.0 | 3.0 max | 1.25 max | 1.25 max | 0.02 | 0.10 |
| Haynes 230 | — | 22.0 | Balance | 14.0 | 3.0 max | 0.50 max | 0.40 max | — | 0.10 |
Haynes 188 & 230 Mechanical Properties
| Grade | Tensile Strength (MPa) | Yield Strength (0.2% Proof, MPa) | Elongation (%) | Hardness (HRB) | Density (g/cm³) | Melting Point (°C) |
|---|---|---|---|---|---|---|
| Haynes 188 | 960 | 450 | 40 | 93 (typical) | 9.14 | 1338–1382 |
| Haynes 230 | 860 | 410 | 45 | 92 (typical) | 8.97 | 1399–1427 |
Haynes 188 Types
Haynes 230 Industries & Applications
Haynes 188 & 230 Flange Size Chart
| Pipe Normal Diam. | O.D. Flange | Thk. Of Flange Min | Diam. of Hub |
Diameter of Raised Face | Length Hub.Y | Thread Length | Diam. of Bolt Circle |
Diam. of Bolt Holes |
Number of Bolts |
Diam. of Bolts (inch) |
KG | LB | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| inch | dn | O | C | X | G | Y | T | BC | BH | BN | BD | ||
| 1/2″ | 15 | 89.00 | 11.20 | 30.20 | 35.10 | 15.70 | 15.70 | 60.50 | 15.80 | 4 | 1/2″ | 0.4 | 0.9 |
| 3/4″ | 20 | 98.50 | 12.70 | 38.10 | 42.90 | 15.70 | 15.70 | 69.90 | 15.80 | 4 | 1/2″ | 0.7 | 1.5 |
| 1″ | 25 | 108.00 | 14.20 | 49.30 | 50.80 | 17.50 | 17.50 | 79.30 | 15.80 | 4 | 1/2″ | 0.8 | 1.8 |
| 1-1/4″ | 32 | 117.50 | 15.70 | 58.70 | 63.50 | 20.60 | 20.60 | 88.90 | 15.80 | 4 | 1/2″ | 1.2 | 2.6 |
| 1-1/2″ | 40 | 127.00 | 17.50 | 65.00 | 73.20 | 22.40 | 22.40 | 98.60 | 15.80 | 4 | 1/2″ | 1.5 | 3.3 |
| 2″ | 50 | 152.50 | 19.10 | 77.70 | 91.90 | 25.40 | 25.40 | 120.70 | 19.10 | 4 | 5/8″ | 2.3 | 5.1 |
| 2-1/2″ | 65 | 178.00 | 22.40 | 90.40 | 104.60 | 28.40 | 28.40 | 139.70 | 19.10 | 4 | 5/8″ | 3.7 | 8.1 |
| 3″ | 80 | 190.50 | 23.90 | 108.00 | 127.00 | 30.20 | 30.20 | 152.40 | 19.10 | 4 | 5/8″ | 4.1 | 9 |
| 3-1/2″ | 90 | 216.00 | 23.90 | 122.20 | 139.70 | 31.80 | 31.80 | 177.80 | 19.10 | 8 | 5/8″ | 5.1 | 11.2 |
| 4″ | 100 | 228.50 | 23.90 | 134.90 | 157.20 | 33.30 | 33.30 | 190.50 | 19.10 | 8 | 5/8″ | 5.9 | 13 |
| 5″ | 125 | 254.00 | 23.90 | 163.60 | 185.70 | 36.60 | 36.60 | 215.90 | 22.40 | 8 | 3/4″ | 7 | 15.4 |
| 6″ | 150 | 279.50 | 25.40 | 192.00 | 215.90 | 39.60 | 39.60 | 241.30 | 22.40 | 8 | 3/4″ | 8.4 | 18.5 |
| 8″ | 200 | 343.00 | 28.40 | 246.10 | 269.70 | 44.50 | 44.50 | 298.50 | 22.40 | 8 | 3/4″ | 13 | 28.6 |
| 10″ | 250 | 406.50 | 30.20 | 304.80 | 323.90 | 49.30 | 49.30 | 362.00 | 25.40 | 12 | 7/8″ | 18 | 39.5 |
| 12″ | 300 | 482.50 | 31.80 | 365.30 | 381.00 | 55.60 | 55.60 | 431.80 | 25.40 | 12 | 7/8″ | 29 | 64 |
| 14″ | 350 | 533.50 | 35.10 | 400.10 | 412.80 | 57.20 | 57.20 | 476.30 | 28.50 | 12 | 1″ | 39 | 86 |
| 16″ | 400 | 597.00 | 36.60 | 457.20 | 469.90 | 63.50 | 63.50 | 539.80 | 28.50 | 16 | 1″ | 47 | 103 |
| 18″ | 450 | 635.00 | 39.60 | 505.00 | 533.40 | 68.30 | 68.30 | 577.90 | 31.80 | 16 | 1 1/8″ | 57 | 126 |
| 20″ | 500 | 698.50 | 42.90 | 558.80 | 584.20 | 73.20 | 73.20 | 635.00 | 31.80 | 20 | 1 1/8″ | 76 | 167 |
| 24″ | 600 | 813.00 | 47.80 | 663.40 | 692.20 | 82.60 | 82.60 | 749.30 | 35.10 | 20 | 1 1/4″ | 97 | 214 |
Haynes 230 Buttweld Fittings Dimensions
| Product range and theoretical weights (kg) | |||||||||
| DN | Schedule 10S | Schedule 40S | Schedule 80S | ||||||
| 90° Elbow | 45° Elbow | Equal tee | 90° Elbow | 45° Elbow | Equal tee | 90° Elbow | 45° Elbow | Equal tee | |
| 8 | 0.02 | 0.01 | 0.03 | 0.03 | 0.02 | 0.06 | 0.04 | 0.03 | 0.07 |
| 10 | 0.03 | 0.02 | 0.05 | 0.03 | 0.02 | 0.03 | 0.06 | 0.04 | 0.09 |
| 15 | 0.06 | 0.03 | 0.09 | 0.08 | 0.04 | 0.10 | 0.10 | 0.05 | 0.14 |
| 20 | 0.07 | 0.03 | 0.13 | 0.08 | 0.04 | 0.17 | 0.11 | 0.05 | 0.20 |
| 25 | 0.14 | 0.08 | 0.28 | 0.15 | 0.11 | 0.29 | 0.22 | 0.14 | 0.38 |
| 32 | 0.23 | 0.11 | 0.49 | 0.26 | 0.17 | 0.59 | 0.40 | 0.23 | 0.68 |
| 40 | 0.30 | 0.17 | 0.68 | 0.40 | 0.23 | 0.86 | 0.51 | 0.29 | 1.02 |
| 50 | 0.50 | 0.25 | 0.85 | 0.70 | 0.4 | 1.28 | 0.91 | 0.59 | 1.59 |
| 65 | 0.85 | 0.48 | 1.41 | 1.40 | 0.77 | 2.19 | 1.81 | 0.99 | 3.13 |
| 80 | 1.25 | 0.63 | 1.77 | 2.20 | 1.08 | 3.31 | 2.97 | 1.50 | 4.45 |
| 90 | 1.70 | 0.75 | 2.67 | 2.83 | 1.42 | 4.08 | 4.00 | 2.00 | 5.44 |
| 100 | 2.10 | 1.08 | 3.46 | 4.47 | 2.09 | 5.27 | 6.18 | 2.81 | 7.71 |
| 150 | 5.45 | 2.72 | 8.07 | 10.89 | 5.44 | 10.99 | 16.32 | 8.16 | 13.61 |
| 200 | 10.20 | 5.33 | 15.65 | 21.54 | 10.77 | 20.91 | 33.11 | 16.56 | 28.12 |
| 250 | 18.15 | 9.75 | 26.46 | 38.56 | 19.27 | 35.38 | 51.71 | 25.86 | 49.90 |
| 300 | 25.80 | 13.62 | 39.46 | 59.42 | 29.71 | 62.14 | 79.38 | 39.69 | 83.91 |
| Product range and theoretical weights (kg) | |||||||||
| DN | Schedule 10S | Schedule 40S | Schedule 80S | ||||||
| Con reducer | Ecc reducer | Reducing tee | Con reducer | Ecc reducer | Reducing tee | Con reducer | Ecc reducer | Reducing tee | |
| 40x.25 | 0.19 | 0.19 | 0.60 | 0.26 | 0.26 | 0.76 | 0.34 | 0.34 | 0.90 |
| 50×25 | 0.28 | 0.28 | 0.73 | 0.40 | 0.40 | 1.10 | 0.54 | 0.54 | 1.37 |
| 50×40 | 0.31 | 0.31 | 0.76 | 0.45 | 0.45 | 1.15 | 0.59 | 0.59 | 1.43 |
| 80x.50 | 0.55 | 0.55 | 1.56 | 1.00 | 1.00 | 2.91 | 1.79 | 1.79 | 3.91 |
| 100×50 | 0.78 | 0.78 | 2.94 | 1.50 | 1.50 | 4.48 | 1.95 | 1.95 | 6.55 |
| 100×80 | 0.87 | 0.87 | 3.04 | 1.74 | 1.74 | 4.64 | 2.33 | 2.33 | 6.79 |
| 150×80 | 1.82 | 1.82 | 6.86 | 3.95 | 3.95 | 9.68 | 5.51 | 5.51 | 11.57 |
| 150×100 | 1.96 | 1.96 | 7.10 | 4.07 | 4.07 | 11.94 | 5.96 | 5.96 | 11.97 |
| 200×100 | 3.01 | 3.01 | 13.46 | 6.55 | 6.55 | 17.98 | 9.23 | 9.23 | 24.18 |
| 200×150 | 3.19 | 3.19 | 14.08 | 6.74 | 6.74 | 18.82 | 10.12 | 10.12 | 25.31 |
Haynes 188 & 230 Forged Fittings Dimensions
| Size | OD | WT | SR 90 Deg Elbows Centre – Face A | Weight | LR 90 Deg Elbows Centre – Face A | Weight | SR 45 Deg Elbows Centre – Face B | Weight | ||
|---|---|---|---|---|---|---|---|---|---|---|
| mm | inch. | mm | mm | SCH | mm | kg | mm | kg | mm | kg |
| 500 | 20″ | 508 | 9.52 | STD | 508 | 93.5 | 762 | 140 | 318 | 85 |
| 12.7 | X.S | 508 | 124 | 762 | 186 | 318 | 112.5 | |||
| 450 | 18″ | 457 | 9.52 | STD | 457 | 75.6 | 686 | 113 | 286 | 56.5 |
| 12.7 | X.S | 457 | 100 | 686 | 150 | 286 | 75 | |||
| 400 | 16″ | 406.4 | 9.52 | STD | 406 | 59.5 | 610 | 89.3 | 254 | 45 |
| 12.7 | X.S | 406 | 78.7 | 610 | 118 | 254 | 59 | |||
| 350 | 14″ | 355.6 | 9.52 | STD | 356 | 45.4 | 533 | 68.1 | 222 | 34.1 |
| 12.7 | X.S | 356 | 60 | 533 | 90 | 222 | 45 | |||
| 300 | 12″ | 323.9 | 9.52 | STD | 305 | 35.4 | 457 | 53.1 | 190 | 26.6 |
| 12.7 | X.S | 305 | 46.7 | 457 | 70 | 190 | 35 | |||
| 250 | 10″ | 273.9 | 9.27 | STD | 254 | 24.1 | 381 | 36.1 | 159 | 18.1 |
| 12.7 | X.S | 254 | 32.5 | 381 | 48.8 | 159 | 24.4 | |||
| 200 | 8″ | 219.1 | 8.18 | STD | 203 | 13.6 | 305 | 20.4 | 127 | 10.2 |
| 12.7 | X.S | 203 | 20.9 | 305 | 30.9 | 127 | 15.5 | |||
| 150 | 6″ | 168.3 | 7.11 | STD | 152.4 | 6.8 | 229 | 10.1 | 95.2 | 5.1 |
| 10.97 | X.S | 152.4 | 10.2 | 229 | 15.3 | 95.2 | 7.7 | |||
| 125 | 5″ | 141.3 | 6.65 | STD | 127 | 4.8 | 190 | 6.8 | 79.4 | 3.4 |
| 9.5 | X.S | 127 | 6.5 | 190 | 10 | 79.4 | 5 | |||
| 100 | 4″ | 114.3 | 62 | STD | 101.6 | 2.8 | 152.4 | 4.2 | 63.5 | 2.1 |
| 8.56 | X.S | 101.6 | 3.9 | 152.4 | 5.7 | 63.5 | 2.9 | |||
| 80 | 3″ | 88.9 | 5.49 | STD | 76.2 | 1.45 | 114.3 | 2.18 | 50.8 | 1.1 |
| 7.62 | X.S | 76.2 | 1.95 | 114.3 | 2.86 | 50.8 | 1.45 | |||
| 65 | 21/2″ | 73 | 5.16 | STD | 63.5 | 0.95 | 95.2 | 1.46 | 44.4 | 0.73 |
| 71 | X.S | 63.5 | 1.27 | 95.2 | 1.82 | 44.4 | 0.91 | |||
| 50 | 2″ | 60.3 | 3.91 | STD | 50.8 | 0.5 | 76.2 | 0.72 | 34.9 | 0.36 |
| 5.54 | X.S | 50.8 | 0.68 | 76.2 | 1 | 34.9 | 0.5 | |||
| 40 | 11/2″ | 48.3 | 3.68 | STD | 38.1 | 0.26 | 57.1 | 0.4 | 28.6 | 0.2 |
| 58 | X.S | 38.1 | 0.35 | 57.1 | 0.5 | 28.6 | 0.25 | |||
| 32 | 11/4″ | 42.2 | 3.56 | STD | 31.75 | 0.18 | 47.6 | 0.28 | 25.4 | 0.14 |
| 4.85 | X.S | 31.75 | 0.24 | 47.6 | 0.39 | 25.4 | 0.2 | |||
| 25 | 1″ | 33.4 | 3.38 | STD | 25.4 | 0.11 | 38.1 | 0.15 | 22.2 | 09 |
| 4.55 | X.S | 25.4 | 0.14 | 38.1 | 0.19 | 22.2 | 0.11 | |||
| 20 | 3/4″ | 26.7 | 2.87 | STD | – | – | 28.6 | 08 | 11.1 | 04 |
| 3.91 | X.S | – | – | 28.6 | 0.11 | 11.1 | 05 | |||
| 15 | 1/2″ | 21.3 | 2.78 | STD | – | – | 38.1 | 08 | 15.9 | 04 |
| 3.73 | X.S | – | – | 38.1 | 0.10 | 15.9 | 05 | |||
